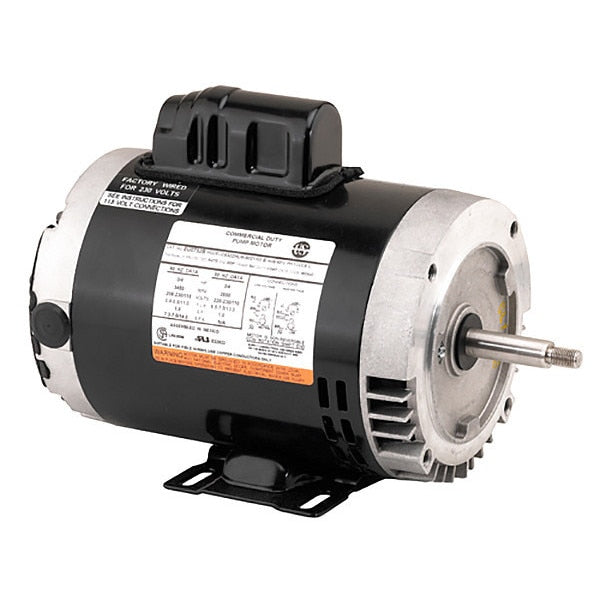

Motor, 2 HP, 56C Frame, Single Phase

SKU
Brand U.S. Motors
Categories
Description Motor, Body Dia. 5.9 in, Conduit Box Location Exterior, Duty Cycle Continuous, Frame 56C, Hz 60/50, Full Load Amps 19.6/10.7-9.8, Full Load Amps @ 50Hz 19.6/10.7-9.8 A, Height 8 1/2 in, HP 2 hp, HP @ 50Hz 2, Ins. Class B, Inverter Rated No, Length Less Shaft 10 5/16 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 22.2/12.2-11.1 A, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
graingerSKU: , mscSKU: , zoro_no: G1933299, mongo_id: 65bbe6173aaddbd5a9007379

Web Price

$436.24 / each

Qty

Product Details

Body Dia. 5.9 in

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 56C

Full Load Amps 19.6/10.7-9.8

Full Load Amps @ 50Hz 19.6/10.7-9.8 A

Height 8 1/2 in

HP @ 50Hz 2

HP_ 2 hp

Hz_ 60/50

Ins. Class B

Inverter Rated No

Length Less Shaft 10 5/16 in

Max. Ambient Temp. 104 Degrees F

Max. SF Amps 22.2/12.2-11.1 A

Motor Application Pump

Motor Bearings Ball

Motor Design Capacitor-Start

Motor Enclosure Design Open Dripproof

Motor Frame Material Rolled Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face

Motor Service Factor 1.2

Motor Shaft Design Keyed

Motor Shaft Rotation CCW

Motor Sub Application For use on chiller, condensate, and other HVAC duty pumps, booster and irrigation pumps, dishwasher and part washer pumps,watering and de-watering pumps, and other commercial duty pumping applications., Special Application Commercial Pump

Motor Thermal Protection Auto

Nameplate RPM 3,450/2,850

No. of Speeds 1

Nominal Efficiency 84.1 %

Overall Length 12 3/8 in

Package Quantity 1

Phase Single

RPM @ 50Hz 3,450/2,850

RPM Range 3,001-3,600

Service Factor @ 50Hz 1.2

Shaft Dia. 5/8 in

Usable @ 200V No
