Name: Motor, 2 HP, 56YZ Frame, Single Phase
Brand: U.S. Motors
SKU: G1930097
Price: 513.74 USD
Availability: InStock

Home / Motor, 2 HP, 56YZ Frame, Single Phase

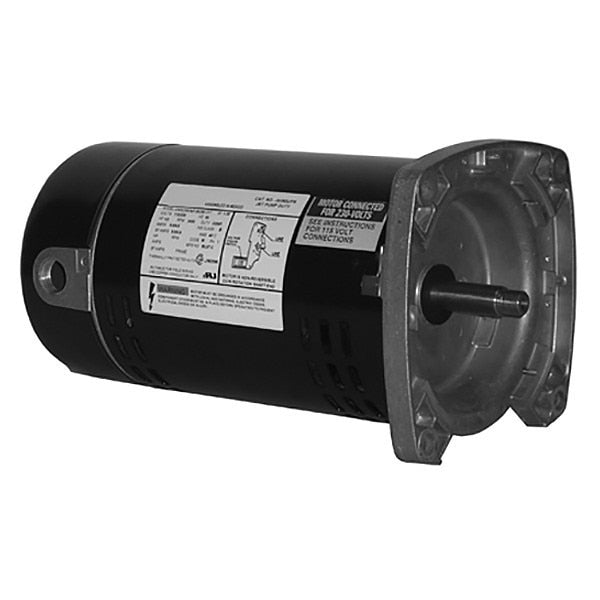

Motor, 2 HP, 56YZ Frame, Single Phase

SKU
Brand U.S. Motors
Categories
Description Water System Pump Motors, Body Dia. 6.5 in, Bolt Circle Dia. 7/16 in, Duty Cycle Continuous, Frame 56YZ, Hz 60, Full Load Amps 8.6 A, HP 2 hp, Ins. Class B, Inverter Rated No, Length Less Shaft 11 5/16 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 11.0 A, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

Web Price

$513.74 / each

Qty

Product Details

Body Dia. 6.5 in

Bolt Circle Dia. 7/16 in

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 56YZ

Full Load Amps 8.6 A

HP_ 2 hp

Hz_ 60

Ins. Class B

Inverter Rated No

Length Less Shaft 11 5/16 in

Max. Ambient Temp. 104 Degrees F

Max. SF Amps 11.0 A

Motor Application Pump

Motor Bearings Ball

Motor Design Capacitor-Start

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Flange

Motor Service Factor 1.3

Motor Shaft Design Threaded

Motor Shaft Rotation CCW

Motor Sub Application Special ApplicationSingle Phase Open Dripproof (ODP)Jet Pump Square Flange

Motor Thermal Protection Auto

Nameplate RPM 3,450

NEMA Design 56J

No. of Speeds 1

Nominal Efficiency 84.7 %

Overall Length 13 7/16 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Dia. 5/8 in

Shaft Material Stainless Steel

Standards CSA Certified, UL Listed

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 28 lb
