Home / Motor, 3 HP, 3600, 56C, 208-230/460V

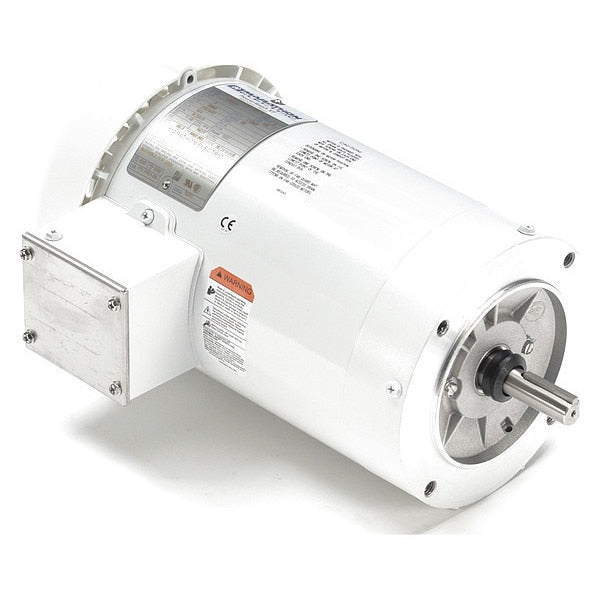

Motor, 3 HP, 3600, 56C, 208-230/460V

Motor, 3 HP, 3600, 56C, 208-230/460V

  • U.S. Motors
  • Washdown Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 3,600, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 7.9-6.7/3.4 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position All Angle

    graingerSKU: , mscSKU: , zoro_no: G4339355, mongo_id: 65bbe5993aaddbd5a9fd4dcc

Web Price
$1,151.24 / each
Qty

Product Details

6.31 in
CC030A
Mexico
Removable Drain Plugs
Continuous
Continuous
56C
7.9-6.7/3.4 A
3
60 Hz
F
No
12 5/16 in
40 Degrees C
Washdown
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
All Angle
Face/Base
1.15
Keyed
CCW, CW
Garage/Gate Opener
None
3,600
B
1
89.8 %
14 3/8 in
1
Three
3,001-3,600
5/8 in
2 1/16 in
Stainless Steel
CSA (156060), UL (E22922)
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
32 lb
