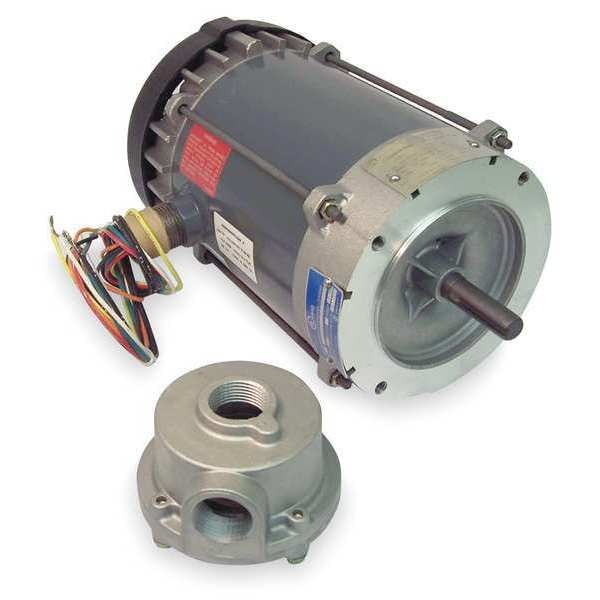

Motor, 3/4 HP, 1800 rpm, 56C, 208-230/460V

SKU
Brand U.S. Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 1,800, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.8-2.9/1.4 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60/50 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class 1 C,D / 2 E,F,G, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Face

Web Price

$603.74 / each

Qty

Product Details

CC Number CC030A

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56C

Full Load Amps 2.8-2.9/1.4 A

Full Load Amps @ 50Hz 2.8-2.9/1.4 A

Hazardous Location Class 1 C,D / 2 E,F,G

Hazardous Location Division Division 1

HP @ 50Hz 3/4

HP_ 3/4

Hz_ 60/50 Hz

Includes Conduit Box

Ins. Class B

Lead Length 24 in

Length Less Shaft 12 3/16 in

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection Auto

Nameplate RPM 1,800

NEMA Design B

No. of Speeds 1

Nominal Efficiency 84.5 %

Overall Length 14 1/4 in

Package Quantity 1

Phase Three

RPM @ 50Hz 1,425

RPM Range 1,701-1,800

Service Factor @ 50Hz 1.15

Shaft Dia. 5/8 in

Shaft Length 2 1/16 in

Standards CSA Certified, UL Listed

Temp. Code T3C

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage @ 50Hz 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 1,150 lb
