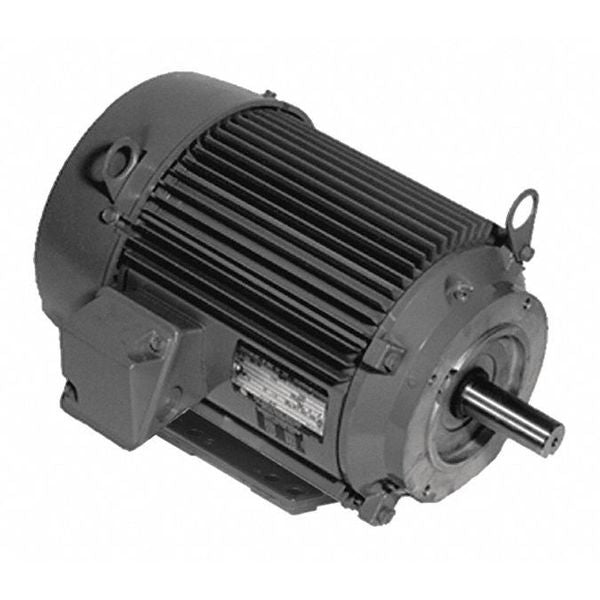

Motor, 3/4 HP, 56J Frame, Three Phase

SKU
Brand U.S. Motors
Categories
Description Motor, Body Dia. 5.9 in, Conduit Box Location Exterior, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 2.8-2.7/1.35, Full Load Amps @ 50Hz 2.8-2.7/1.35 A, HP 3/4 hp, HP @ 50Hz 3/4, Ins. Class B, Inverter Rated No, Length Less Shaft 9 5/16 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 3.7-3.6/1.8 A, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
graingerSKU: , mscSKU: 81423113, zoro_no: G1931862, mongo_id: 65bbea2f22d7a989a999cf10

Web Price

$298.74 / each

Qty

Product Details

Body Dia. 5.9 in

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 56J

Full Load Amps 2.8-2.7/1.35

Full Load Amps @ 50Hz 2.8-2.7/1.35 A

HP @ 50Hz 3/4

HP_ 3/4 hp

Hz_ 60/50

Ins. Class B

Inverter Rated No

Length Less Shaft 9 5/16 in

Max. Ambient Temp. 104 Degrees F

Max. SF Amps 3.7-3.6/1.8 A

Motor Application Pump

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Rolled Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.5

Motor Shaft Design Threaded

Motor Shaft Rotation CCW

Motor Sub Application For use on chiller, condensate, and other HVAC duty pumps, booster and irrigation pumps, dishwasherand part washer pumps, watering and de-watering pumps, and other commercial duty pumping applications., Special Applcation Commercial Pump

Motor Thermal Protection None

Nameplate RPM 3,450/2,850

No. of Speeds 1

Nominal Efficiency 82.7 %

Overall Length 11 7/8 in

Package Quantity 1

Phase Three

RPM @ 50Hz 3,450/2,850

RPM Range 3,001-3,600

Service Factor @ 50Hz 1.5

Shaft Dia. 5/8 in

Usable @ 200V No
