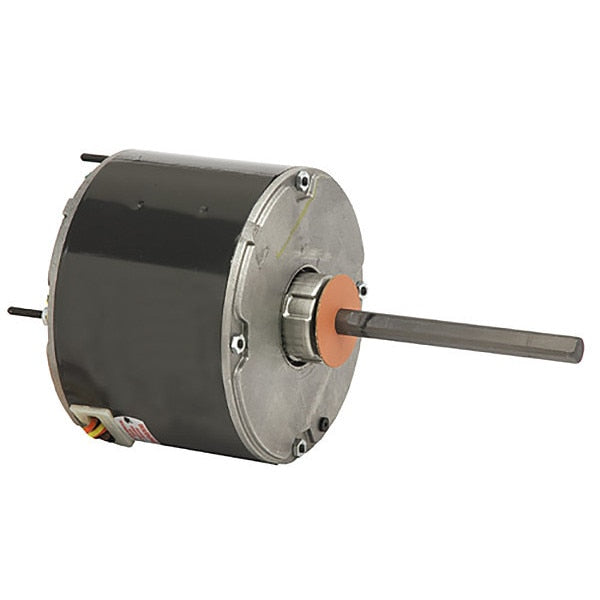

Motor

SKU
Brand U.S. Motors
Categories
Description Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, 1.30 Full Load Amps, 48 Frame, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 140 Degrees F, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Aluminum, Motor Mounting Position All Angle
graingerSKU: , mscSKU: 04177077, zoro_no: G1942012, mongo_id: 65bbe76a9a749db822736ca7

Web Price

$201.24 / each

Qty

Product Details

Body Dia. 5 5/8 in

Bolt Circle Dia. 5 1/8 in

Capacitor Required Yes

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Extended Thru-Bolts Yes

Features Extended Studs, Hubless Lead End

Frame 48

Full Load Amps 1.30

HP_ 1/3

Hz_ 60

Includes Drain Holes Both Ends

Ins. Class B

Lead Length 36 in

Length Less Shaft 5 7/8 in

Max. Ambient Temp. 140 Degrees F

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Capacitor-Start

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Aluminum

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Nameplate RPM 1,075

No. of Speeds 1

Nominal Efficiency 65.8 %

Overall Length 11 7/8 in

Package Quantity 1

Phase Single

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 6 in

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 16.53 lb
