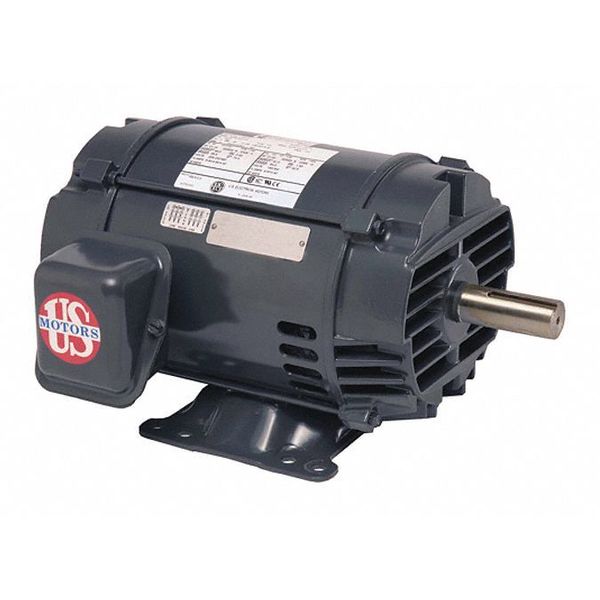

Motor, 3PH, 10HP, 1800,200V, ODP JM

SKU
Brand U.S. Motors
Categories
Description Close Coupled Pump, Bearing Protection Shaft Shields, Body Dia. 9.4 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Position F1, Duty Cycle Continuous, Frame 215JM, Hz 60, Full Load Amps 28.5, Height 11 3/16 in, HP 10 hp, Ins. Class F, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 33.0, Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft, Motor Bearings Ball

Web Price

$1,109.99 / each

Qty

Product Details

Bearing Protection Shaft Shields

Body Dia. 9.4 in

Bolt Circle Dia. 7 1/4 in

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 215JM

Full Load Amps 28.5

Height 11 3/16 in

HP_ 10 hp

Hz_ 60

Ins. Class F

Length Less Shaft 15 in

Max. Ambient Temp. 40 Degrees C

Max. SF Amps 33.0

Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Rolled Steel

Motor Mounting Position Horizontal

Motor Mounting Type Horizontal Footed

Motor Service Factor 1.15

Motor Shaft Design Keyed

Nameplate RPM 1,760

NEMA Design B

No. of Speeds 1

Nominal Efficiency 91.7 %
