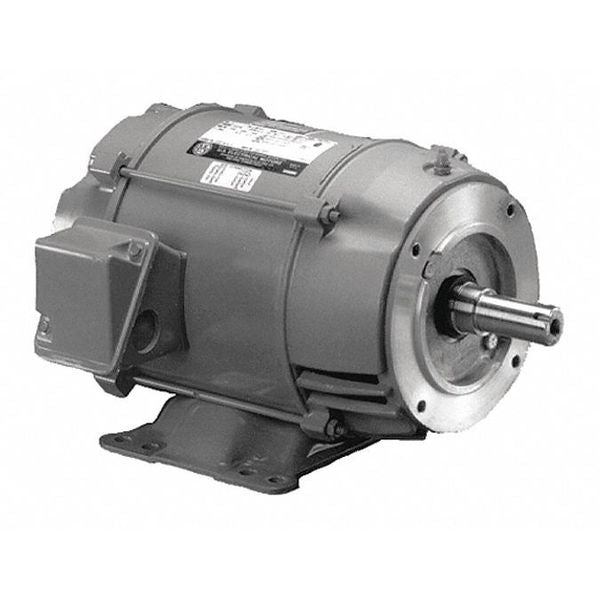

Motor, 3PH, 2HP, 1800,230/460V, ODP JM

SKU
Brand U.S. Motors
Categories
Description Close Coupled Pump, Bearing Protection Shaft Shields, Body Dia. 6.4 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Position F1, Duty Cycle Continuous, Frame 145JM, Hz 60/50, Full Load Amps 5.9-5.6/2.8, Height 6 3/4 in, HP 2 hp, Ins. Class F, Length Less Shaft 11 1/8 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 6.6-6.2/3.1, Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft

Web Price

$519.99 / each

Qty

Product Details

Bearing Protection Shaft Shields

Body Dia. 6.4 in

Bolt Circle Dia. 5 7/8 in

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Frame 145JM

Full Load Amps 5.9-5.6/2.8

Height 6 3/4 in

HP_ 2 hp

Hz_ 60/50

Ins. Class F

Length Less Shaft 11 1/8 in

Max. Ambient Temp. 40 Degrees C

Max. SF Amps 6.6-6.2/3.1

Motor Application Damp, Dusty or Dirty Environments, Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Rolled Steel

Motor Mounting Position Horizontal

Motor Mounting Type Horizontal Footed

Motor Service Factor 1.15

Motor Shaft Design Keyed

Nameplate RPM 1,745/1,420

NEMA Design B

No. of Speeds 1

Nominal Efficiency 86.5 %
