Home / Motor, 3PH, 5HP, 1800,230/460V, ACCU-Torq

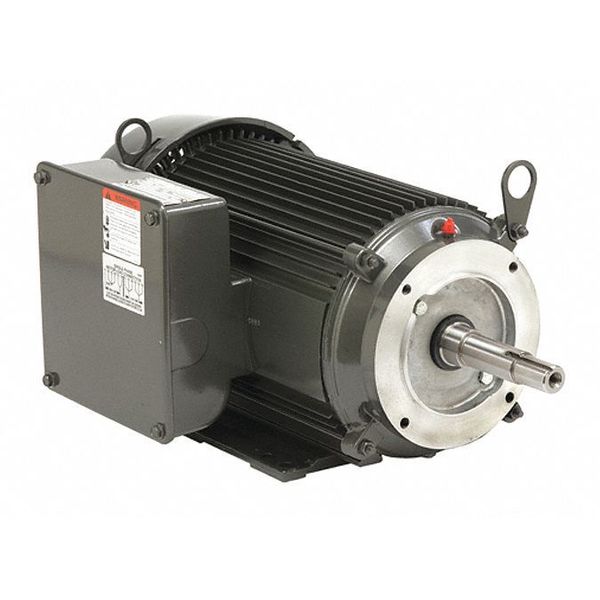

Motor, 3PH, 5HP, 1800,230/460V, ACCU-Torq

Motor, 3PH, 5HP, 1800,230/460V, ACCU-Torq

  • U.S. Motors
  • Motor,3PH,5HP,1800,230/460V,ACCU-Torq, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,770 rpm, No. of Speeds 1, Voltage 230/460V, Full Load Amps 13.9/7.0 A, 184 Frame, Torque 531 ft-lb, Max. Speed 1,770 RPM, 60 Hz Hz, Max. Operating Frequency 60 Hz, Motor Service Factor 1, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Horizontal Footed
Web Price
$1,053.74 / each
Qty

Product Details

Removable
CC030A
F1
Mexico
Continuous
Yes
184
13.9/7.0 A
5
60 Hz
F
13 3/8 in
3 yr
40 Degrees C
60 Hz
1,770 RPM
Cranes and Hoists, Industrial Machinery, Machine Tools, Material Handling, Packaging Machines, Test Equipment
3-Phase
Totally Enclosed
Aluminum
Horizontal
Horizontal Footed
1
Keyed
CW/CCW
1,770 rpm
A
1
89.5 %
16 in
1
Three
1 1/8 in
2 5/8 in
CSA Certified, UR
531 ft-lb
230/460V
