Home / Motor, 3PH, 5HP, 3600,230/460V, ST FR 184TC, 5 HP HP, 184TC Frame, 208-230/460 V Voltage

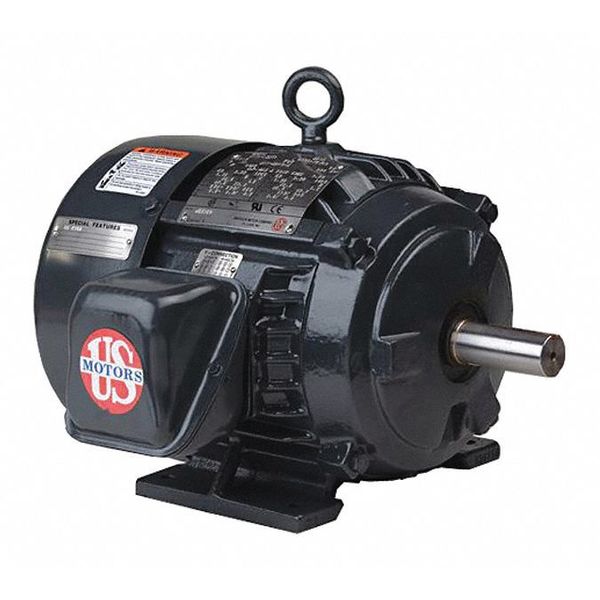

Motor, 3PH, 5HP, 3600,230/460V, ST FR 184TC, 5 HP HP, 184TC Frame, 208-230/460 V Voltage

Motor, 3PH, 5HP, 3600,230/460V, ST FR 184TC, 5 HP HP, 184TC Frame, 208-230/460 V Voltage

  • U.S. Motors
  • Motor, Three Phase, Motor Design 3-Phase, 5 hp HP, Nameplate RPM 3,515, No. of Speeds 1, Voltage 208-230/460V, Full Load Amps 13.6-12.1/6.1 A, 184TC Frame, Usable @ 208V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed, Motor Shaft Rotation CW/CCW, Motor Mounting Type Horizontal Footed, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed
Web Price
$808.74 / each
Qty

Product Details

Double Shields
CC030A
Mexico
CONT
Continuous
184TC
13.6-12.1/6.1 A
5 hp
60 Hz
F
Yes
3.73 kW
13 3/8 in
104 Degrees F
General Application
6205-2Z-J/C3,6206-2Z-J/C3
3-Phase
Totally Enclosed
Steel
Horizontal
Horizontal Footed
1.15
Keyed
CW/CCW
Blowers, Compressors, Direct Connected Equipment, Fans, Pumps
3,515
B
1
88.5 %
15 7/8 in
1
Three
3515 RPM
1 1/8 in
2 1/2 in
CSA Certified, ENERGY cURus
Yes
208-230/460V
65 lb
