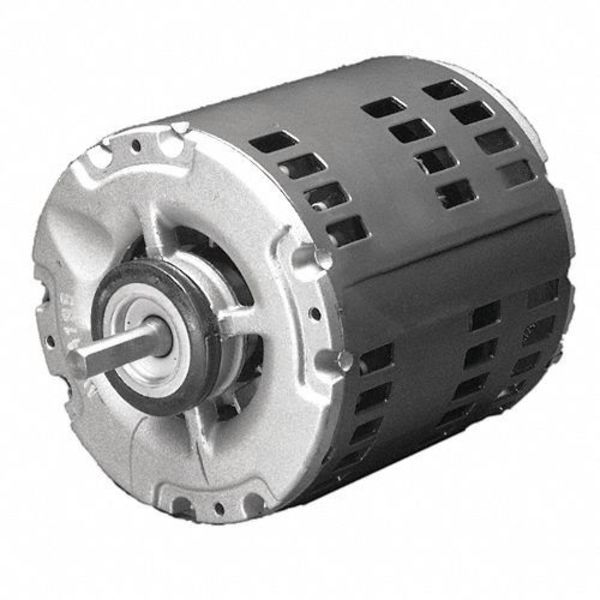

Motor

SKU
Brand U.S. Motors
Categories
Description Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 230V AC, 4.5 Full Load Amps, 56YZ Frame, 60 Hz, Replacement For 56JD01, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Hub, Motor Frame Material Steel, Inverter Rated No

Web Price

$167.49 / each

Qty

Product Details

10 Ft. Cord and Pull Chain Switch No

Body Dia. 6 1/2 in

Capacitor Required No

Country of Origin (subject to change) Mexico

Duty Cycle Continuous

Extended Thru-Bolts Yes

Features Corrosion Resistant Rotor Core and Actuator Assembly

Finish Enamel

For Use With S063SSJ7130801B

Frame 56YZ

Full Load Amps 4.5

HP_ 1/2

Hz_ 60

Ins. Class B

Inverter Rated No

Length Less Shaft 7 7/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application Belt Driven Evaporative Cooling Units

Motor Bearings Self-Align

Motor Design Split-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal or Vertical Shaft Up

Motor Mounting Type Hub

Motor Service Factor 1

Motor Shaft Design Flat

Motor Shaft Rotation CCWLE

Motor Sub Application Evaporator Cooler

Motor Thermal Protection Auto

Nameplate RPM 1,725/1,140

No. of Speeds 2

Nominal Efficiency 48.9 %

On/Off Switch No

Overall Length 9 7/16 in

Package Quantity 1

Part Winding Start Capable No

Phase Single

Removable Base No

Replacement For 56JD01

RPM Range 1,701-1,800

Shaft Dia. 1/2 in

Shaft Length 1 9/16 in

Standards CSA

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 19 lb
