Home / Split-Phase General Purpose Motor, 3/4 HP, 56 Frame, 115V AC Voltage, 1,725 Nameplate RPM

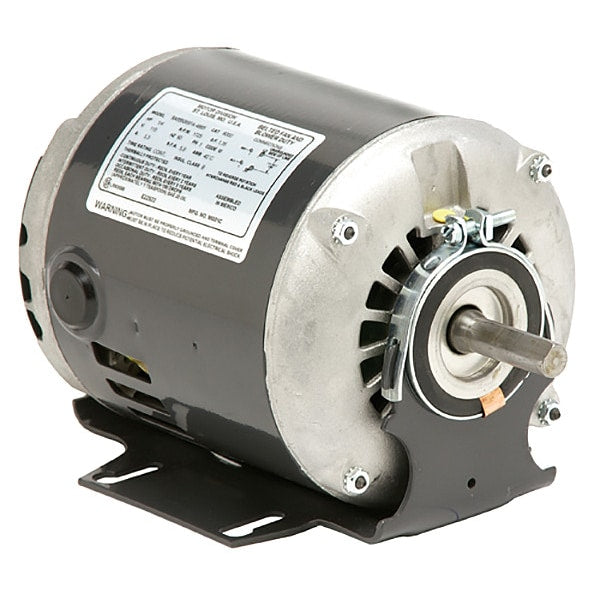

Split-Phase General Purpose Motor, 3/4 HP, 56 Frame, 115V AC Voltage, 1,725 Nameplate RPM

Split-Phase General Purpose Motor, 3/4 HP, 56 Frame, 115V AC Voltage, 1,725 Nameplate RPM

  • U.S. Motors
  • General Purpose Motor, Single Phase, Motor Design Split-Phase, 3/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 11.3 A, 56 Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class A/B, Motor Enclosure Design Open Air-Over, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Inverter Rated No

    graingerSKU: , mscSKU: 04093134, zoro_no: G600721678, mongo_id: 65bbe8e822d7a989a9922ff7

Web Price
$221.24 / each
Qty

Product Details

CC030A
Mexico
Continuous
Continuous
56
11.3 A
3/4 hp
60 Hz
A/B
No
9 7/16 in
2 yr
104 Degrees F
General Application
Ball
Split-Phase
Open Air-Over
Steel
All Angle
Cradle Base
1.25
Keyed
CW/CCW
None
1,725
1
67.7 %
11 5/16 in
1
Single
1701-1800
1,701-1,800
5/8 in
1 7/8 in
CSA, UL
No
No
115V AC
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
23 lb
