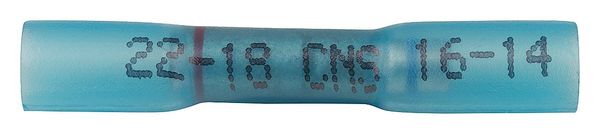

Name: Butt Splice Connector, Blue, PK10
Brand: Velvac
SKU: G5366812
Price: 27.24 USD
Availability: InStock

Home / Butt Splice Connector, Blue, PK10

Butt Splice Connector, Blue, PK10

SKU
Brand Velvac
Categories
Description Splice Connector, Connection Type Crimp, Insulation Material Polyolefin, Insulation Color Blue, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 14 AWG, Standards UL Approved, Termination Style Crimp, Contact Material Copper, Overall Length 1.48 in, RoHS Compliant Yes, Seam Style Brazed, Barrel Inside Diameter 0.064 in 0.092 in, Insulation Type Polyolefin, Minimum Operating Temperature -67 Degrees F, Package Quantity 10
graingerSKU: null, mscSKU: null, zoro_no: G5366812, mongo_id: 65bbe6a53aaddbd5a9043cec

Web Price

$27.24 / each

Qty

Product Details

Barrel ID 0.092 in

Barrel Inside Dia. 0.064 in 0.092 in

Barrel Inside Diameter 0.064 in 0.092 in

Connection Material Copper

Connection Type Crimp

Connector Type Butt Splice

Contact Material Copper

Country of Origin (subject to change) United States

For Wire Size 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG

Includes Heat Shrink Yes

Insulation Color Blue

Insulation Material Polyolefin

Insulation Type Polyolefin

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 14 AWG

Minimum Operating Temperature -67 Degrees F

Minimum Wire Size 22 AWG

Overall Length 1.48 in

Package Quantity 10

RoHS Compliant Yes

Seam Brazed

Seam Style Brazed

Special Features The Heat Shrink Tubing which is 3:1 Dual Wall Tubing with Adhesive Lining Provides a Waterproof Seal with Durable Abrasion Resistance

Standards UL Approved

Termination Style Crimp

Wire Range 22 to 18 AWG and 16 to 14 AWG

Wire Size Range 22 AWG - 14 AWG
