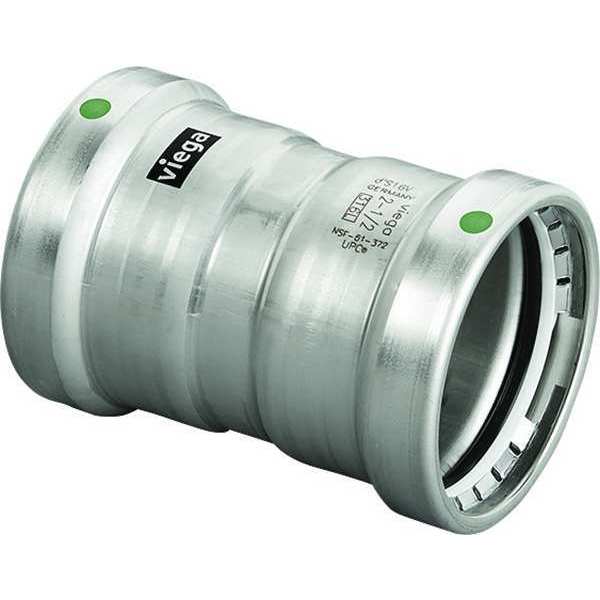

Coupling

SKU
Brand Viega
Categories
Description Coupling, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Stainless Steel, Fitting Side A Pipe Size 2 1/2 in, Fitting Side B Pipe Size 2 1/2 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape Straight Connector, Fitting Side B Tube Outer Diameter 2 1/2 in, Overall Length 4 15/16 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F

Web Price

$361.24 / each

Qty

Product Details

Application Potable Water

Compatible Tool Brand MegaPress XL-ÃÂRings and Press Booster, MegaPress Z3-ÃÂActuator

Compliance ASME B31, ASTM A312, ASTM A554, IAMPO National Standard Plumbing Code (NSPB), IAPMO California Plumbing Code (CPC), IAPMO Uniform Mechanical Code (UMC), IAPMO Uniform Plumbing Code (UPC), ICC International Mechanical Code (IMC), ICC International Plumbing Code (IPC), ICC International Residential Code (IRC), National Building Code of Canada (NBCC), National Plumbing Code of Canada (NPCC)

Connection Type Press-Fit x Press-Fit

Country of Origin (subject to change) Germany

End Connection Type Press

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Press x Press

Fitting Material Stainless Steel

Fitting Pipe Size 2 1/2 in

Fitting Shape Connector

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 2 1/2 in

Fitting Side B Connection Type Press-Fit

Fitting Side B Pipe Size 2 1/2 in

Fitting Side B Tube Outer Diameter 2 1/2 in

For Tube OD 2 1/2 in

Material Grade 316

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Overall Length 4 15/16 in

Package Quantity 1

Pipe Size 2 1/2 in x 2 1/2 in

Pipe Size - Pipe Fitting 2 1/2 in x 2 1/2 in

Specific Fitting Shape Straight Connector

Standards ABS Type Approval, ANSI/CAN/UL 213, ASME B31, ASME B31.1, ASME B31.3, ASME B31.9, ASTM 31.3, ASTM A312, BV (Bureau Veritas), CRN 13492.5 A/B/C, DNV-GL, FM, IAMPO: National Standard Plumbing Code (NSPB), IAPMO California Plumbing Code (CPC), IAPMO PS 117

Stop and Shape Straight Connector

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material 316 Stainless Steel

Tube Size 2 1/2 in x 2 1/2 in
