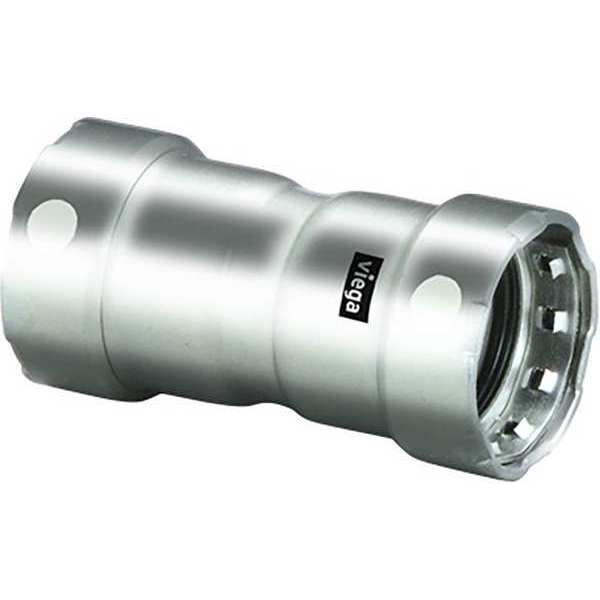

Coupling

SKU
Brand Viega
Categories
Description Coupling, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Stainless Steel, Fitting Side A Pipe Size 1 1/4 in, Fitting Side B Pipe Size 1 1/4 in, Material Grade 304, O-Ring Material FKM, Specific Fitting Shape Straight Connector, Overall Length 4 7/16 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 284 Degrees F

Web Price

$64.94 / each

Qty

Product Details

Compliance ASME B31, ASTM A312, ASTM A554, IAPMO Uniform Mechanical Code (UMC), ICC International Mechanical Code (IMC), ICC International Residential Code (IRC), National Building Code of Canada (NBCC), National Plumbing Code of Canada (NPCC)

Connection Type Press-Fit x Press-Fit

Country of Origin (subject to change) Germany

End Connection Type Press

Fitting Body Material 304 Stainless Steel

Fitting Connection Type Press x Press

Fitting Material Stainless Steel

Fitting Pipe Size 1 1/4 in

Fitting Shape Connector

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 1 1/4 in

Fitting Side B Connection Type Press-Fit

Fitting Side B Pipe Size 1 1/4 in

Material Grade 304

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 284 Degrees F

Minimum Operating Temperature 14 Degrees F

O-Ring Material FKM

Overall Length 4 7/16 in

Package Quantity 1

Pipe Size 1 1/4 in x 1 1/4 in

Pipe Size - Pipe Fitting 1 1/4 in x 1 1/4 in

Specific Fitting Shape Straight Connector

Standards ABS Type Approval, ANSI/CAN/UL 213, ASME B31, ASME B31.1, ASME B31.3, ASME B31.9, ASTM 31.3, ASTM A312, BV (Bureau Veritas), CRN 13492.5 A/B/C, DNV-GL, FM, IAPMO, IAPMO PS 117, ICC, ICC-ES LC1002, IMC, IRC, Lloyd's Register, NFPA 13, NFPA 13D, NFPA 13R

Stop and Shape Straight Connector

Temp. Range 14 Degrees to 284 Degrees F

Tube Fitting Material 304 Stainless Steel

Tube Size 1 1/4 in x 1 1/4 in
