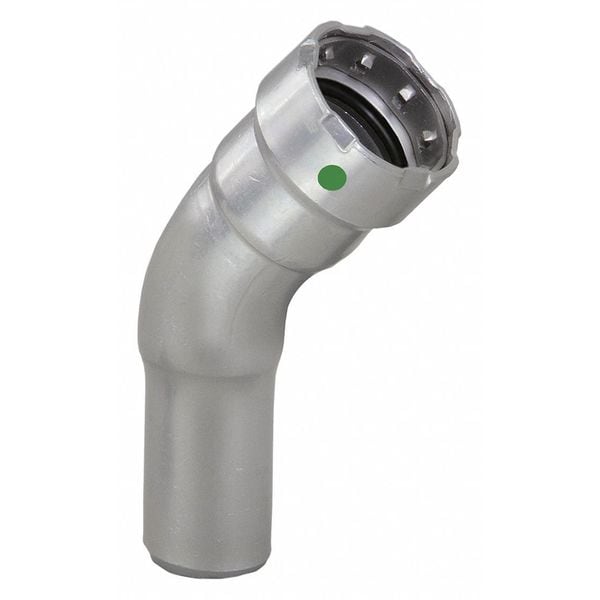

Viega MegaPress 45 street elbow, 3/4" x 3/4"

SKU
Brand Viega
Categories
Description 45 Degree Street Elbow, Application Non-Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side B Copper Tube Size 3/4 in, Fitting Material Carbon Steel, Fitting Side A Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape 45 Degrees Street Elbow Adapter, Finish/Coating Zinc Nickel-Plated, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: 49EU38, mscSKU: , zoro_no: G4700888, mongo_id: 65bbe8919a749db82279c2ef

Web Price

$27.36 / each

Qty

Product Details

Application Non-Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Elbow

Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5A/B, FM Class 1920, IAPMO PS117, ICC-ES PMG-1124, ULC/ORD 213

Connection Type Press-Fit x FTG

Copper Tube Size 3/4 in

Country of Origin (subject to change) Germany

End Connection Type Fitting, Press

Finish/Coating Zinc Nickel-Plated

Fitting Body Material Zinc Nickel-Plated Carbon Steel

Fitting Connection Type Press x Street

Fitting Copper Tube Size 3/4 in

Fitting Material Carbon Steel

Fitting Pipe Size 3/4 in

Fitting Shape Elbow

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 3/4 in

Fitting Side B Connection Type FTG

Fitting Side B Copper Tube Size 3/4 in

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Package Quantity 1

Pipe Fitting Connection Type Press x Street

Pipe Size 3/4 in

Pipe Size (Fittings) 3/4 x 3/4

Pipe Size - Pipe Fitting 3/4 in x 3/4 in

Resistance Properties Corrosion-Resistant

Specific Fitting Shape 45 Degrees Street Elbow Adapter

Specific Pipe Fitting Shape 45 Degrees Elbow

Standards ABS Type Approval, CRN 0A14541.5 A/B, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1124, NFPA 13, NFPA 13D, NFPA 13R, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9, UL, ULC/ORD 213

Stop and Shape 45 Degrees Street Elbow Adapter

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material Carbon Steel

Tube Size 3/4 x 3/4
