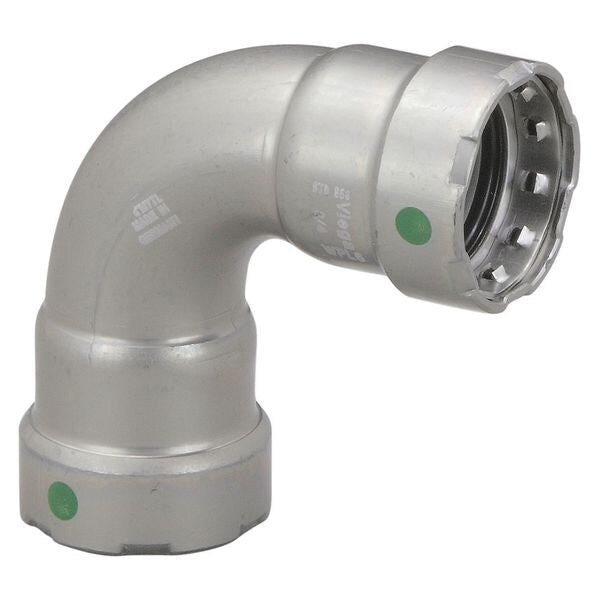

Viega MegaPress 90 elbow, 1-1/2" x 1-1/2"

SKU
Brand Viega
Categories
Description 90 Degree Elbow, Application Non-Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Carbon Steel, Fitting Side A Pipe Size 1 1/2 in, Fitting Side B Pipe Size 1 1/2 in, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Elbow, Finish/Coating Zinc Nickel-Plated, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: 49ET85, mscSKU: , zoro_no: G4574748, mongo_id: 65bbe89022d7a989a98ffeff

Web Price

$65.44 / each

Qty

Product Details

Application Non-Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Elbow

Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5A/B, FM Class 1920, IAPMO PS117, ICC-ES PMG-1124, ULC/ORD 213

Connection Type Press-Fit x Press-Fit

Country of Origin (subject to change) United States

End Connection Type Press

Finish/Coating Zinc Nickel-Plated

Fitting Body Material Zinc Nickel-Plated Carbon Steel

Fitting Connection Type Press x Press

Fitting Material Carbon Steel

Fitting Pipe Size 1 1/2 in

Fitting Shape Elbow

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 1 1/2 in

Fitting Side B Connection Type Press-Fit

Fitting Side B Pipe Size 1 1/2 in

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Package Quantity 1

Pipe Fitting Connection Type Press x Press

Pipe Size 1 1/2 in x 1 1/2 in

Pipe Size (Fittings) 1-1/2 x 1-1/2

Pipe Size - Pipe Fitting 1-1/2 in x 1-1/2 in

Resistance Properties Corrosion-Resistant

Specific Fitting Shape 90 Degrees Elbow

Specific Pipe Fitting Shape 90 Degrees Elbow

Standards ABS Type Approval, CRN 0A14541.5 A/B, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1124, NFPA 13, NFPA 13D, NFPA 13R, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9, UL, ULC/ORD 213

Stop and Shape 90 Degrees Elbow

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material Carbon Steel

Tube Size 1-1/2 x 1-1/2
