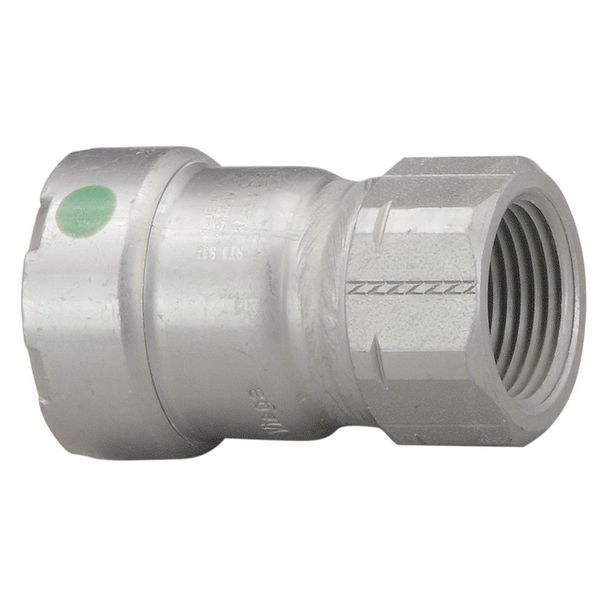

Viega MegaPress adapter, 1-1/4" x 1"

SKU
Brand Viega
Categories
Description Adapter, Application Non-Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FNPT, Fitting Material Carbon Steel, Fitting Side A Pipe Size 1 1/4 in, Fitting Side B Pipe Size 1 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Finish/Coating Zinc Nickel-Plated, Overall Length 3 1/4 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: 49ET43, mscSKU: , zoro_no: G4575019, mongo_id: 65bbe7bf9a749db82275466a

Web Price

$53.06 / each

Qty

Product Details

Application Non-Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Adapter

Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5A/B, FM Class 1920, IAPMO PS117, ICC-ES PMG-1124, ULC/ORD 213

Connection Type Press-Fit x FNPT

Country of Origin (subject to change) Germany

End Connection Type Press, Threaded

Finish/Coating Zinc Nickel-Plated

Fitting Body Material Zinc Nickel-Plated Carbon Steel

Fitting Connection Type Press x Female Pipe Thread

Fitting Material Carbon Steel

Fitting Pipe Size 1 1/4 in, 1 in

Fitting Shape Adapter

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 1 1/4 in

Fitting Side B Connection Type FNPT

Fitting Side B Pipe Size 1 in

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Overall Length 3 1/4 in

Package Quantity 1

Pipe Fitting Connection Type Press x Female Pipe Thread

Pipe Size 1 1/4 in x 1 in

Pipe Size (Fittings) 1-1/4 x 1

Pipe Size - Pipe Fitting 1-1/4 in x 1 in

Resistance Properties Corrosion-Resistant

Specific Fitting Shape Straight Adapter

Specific Pipe Fitting Shape Adapter

Standards ABS Type Approval, CRN 0A14541.5 A/B, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1124, NFPA 13, NFPA 13D, NFPA 13R, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9, UL, ULC/ORD 213

Stop and Shape Straight Adapter

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material Carbon Steel

Tube Size 1-1/4 x 1
