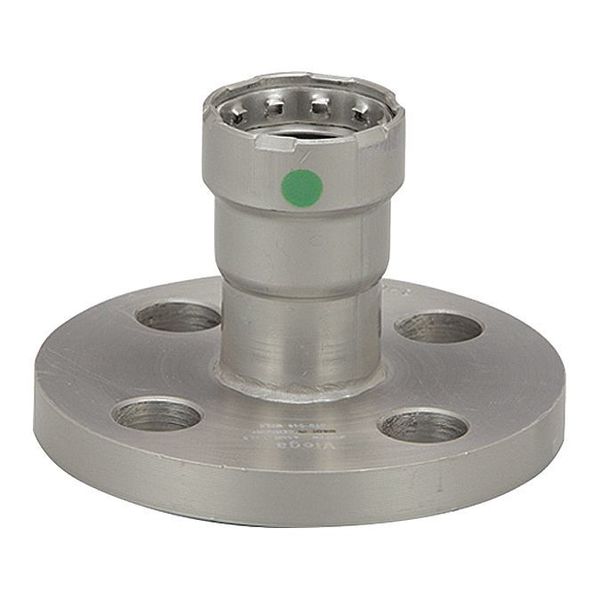

Viega MegaPress flange, 1/2"

SKU
Brand Viega
Categories
Description Flange, Application Non-Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Flange, Fitting Material Carbon Steel, Fitting Side A Pipe Size 1/2 in, O-Ring Material EPDM, Specific Fitting Shape Flange Adapter, Finish/Coating Zinc Nickel-Plated, Overall Length 2 7/16 in, Flange Outside Diameter 3.563 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: 49EU49, mscSKU: , zoro_no: G4574337, mongo_id: 65bbe8149a749db822771027

Web Price

$119.86 / each

Qty

Product Details

Application Non-Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Flange

Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5A/B, FM Class 1920, IAPMO PS117, ICC-ES PMG-1124, ULC/ORD 213

Connection Type Press-Fit x Flange

Country of Origin (subject to change) Germany

End Connection Type Flange, Press

Finish/Coating Zinc Nickel-Plated

Fitting Body Material Zinc Nickel-Plated Carbon Steel

Fitting Connection Type Press

Fitting Material Carbon Steel

Fitting Pipe Size 1/2 in

Fitting Shape Flange

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 1/2 in

Fitting Side B Connection Type Flange

Flange Outside Diameter 3.563 in

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Overall Length 2 7/16 in

Package Quantity 1

Pipe Fitting Connection Type Press

Pipe Size 1/2 in

Pipe Size (Fittings) 1/2

Pipe Size - Pipe Fitting 1/2 in

Resistance Properties Corrosion-Resistant

Specific Fitting Shape Flange Adapter

Specific Pipe Fitting Shape Adapter Flange

Standards ABS Type Approval, CRN 0A14541.5 A/B, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1124, NFPA 13, NFPA 13D, NFPA 13R, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9, UL, ULC/ORD 213

Stop and Shape Flange Adapter

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material Carbon Steel

Tube Size 1/2 in
