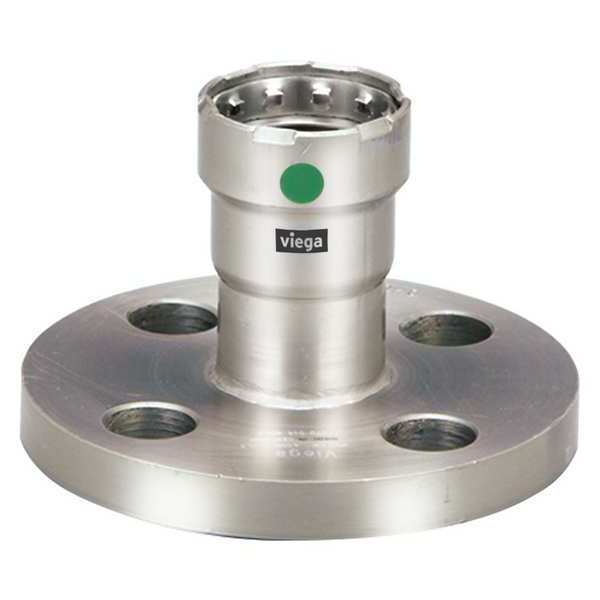

Viega MegaPress flange, 2"

SKU
Brand Viega
Categories
Description Flange, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Flange, Fitting Material Stainless Steel, Fitting Side A Pipe Size 2 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape Flange Adapter, Overall Length 3 1/2 in, Flange Outside Diameter 5.875 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: 53UC01, mscSKU: , zoro_no: G0566507, mongo_id: 65bbe67e3aaddbd5a9033087

Web Price

$492.49 / each

Qty

Product Details

Application Potable Water

Compliance CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61

Connection Type Press-Fit x Flange

Country of Origin (subject to change) Germany

End Connection Type Flange, Press

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Press

Fitting Material Stainless Steel

Fitting Pipe Size 2 in

Fitting Shape Flange

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 2 in

Fitting Side B Connection Type Flange

Flange Outside Diameter 5.875 in

Material Grade 316

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Overall Length 3 1/2 in

Package Quantity 1

Pipe Fitting Connection Type Press

Pipe Size 2 in

Pipe Size (Fittings) 2

Pipe Size - Pipe Fitting 2 in

Specific Fitting Shape Flange Adapter

Specific Pipe Fitting Shape Flange

Standards ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9

Stop and Shape Flange Adapter

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material 316 Stainless Steel

Tube Size 2 in
