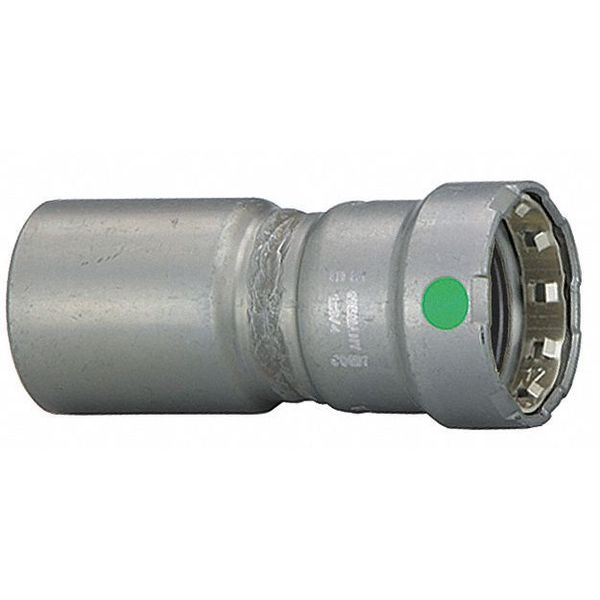

Viega MegaPress reducer, 2" x 1-1/2"

SKU
Brand Viega
Categories
Description Reducer, Application Non-Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 2 in, Fitting Material Carbon Steel, Fitting Side B Pipe Size 1 1/2 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Finish/Coating Zinc Nickel-Plated, Overall Length 4 13/16 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: 49ET68, mscSKU: , zoro_no: G4574827, mongo_id: 65bbe7763aaddbd5a90974ad

Web Price

$80.99 / each

Product Details

Application Non-Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Reducer

Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5A/B, FM Class 1920, IAPMO PS117, ICC-ES PMG-1124, ULC/ORD 213

Connection Type FTG x Press-Fit

Copper Tube Size 2 in

Country of Origin (subject to change) Germany

End Connection Type Fitting, Press

Finish/Coating Zinc Nickel-Plated

Fitting Body Material Zinc Nickel-Plated Carbon Steel

Fitting Connection Type Street x Press

Fitting Copper Tube Size 2 in

Fitting Material Carbon Steel

Fitting Pipe Size 1 1/2 in

Fitting Shape Adapter

Fitting Side A Connection Type FTG

Fitting Side A Copper Tube Size 2 in

Fitting Side B Connection Type Press-Fit

Fitting Side B Pipe Size 1 1/2 in

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Overall Length 4 13/16 in

Package Quantity 1

Pipe Fitting Connection Type Street x Press

Pipe Size 1 1/2 in

Pipe Size (Fittings) 2 x 1-1/2

Pipe Size - Pipe Fitting 2 in x 1-1/2 in

Resistance Properties Corrosion-Resistant

Specific Fitting Shape Straight Adapter

Specific Pipe Fitting Shape Reducer

Standards ABS Type Approval, CRN 0A14541.5 A/B, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1124, NFPA 13, NFPA 13D, NFPA 13R, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9, UL, ULC/ORD 213

Stop and Shape Straight Adapter

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material Carbon Steel

Tube Size 2 in x 1-1/2 in
