Home / Viega MegaPress tee, 1" x 1" x 1"

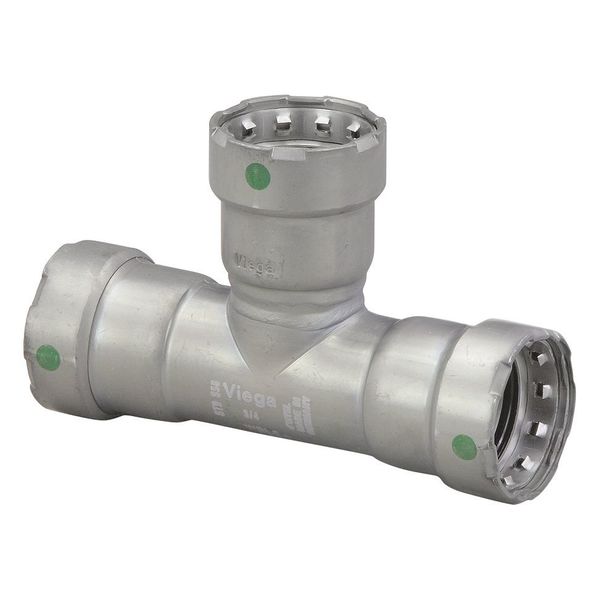

Viega MegaPress tee, 1" x 1" x 1"

SKU
Brand Viega
Categories
Description Tee, Application Air, Non-Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side C Connection Type Press-Fit, Fitting Material Carbon Steel, Fitting Side A Pipe Size 1 in, Fitting Side B Pipe Size 1 in, Fitting Side C Pipe Size 1 in, O-Ring Material EPDM, Specific Fitting Shape Tee, Finish/Coating Zinc Nickel-Plated, Overall Length 5 5/32 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: 49EU12, mscSKU: , zoro_no: G4700967, mongo_id: 65bbe73d9a749db8227295be

Web Price

$49.24 / each

Qty

Product Details

Application Air, Non-Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Tee

Compatible Tube Material Steel

Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5A/B, FM Class 1920, IAPMO PS117, ICC-ES PMG-1124, ULC/ORD 213

Connection Type Press-Fit x Press-Fit x Press-Fit

Country of Origin (subject to change) Germany

End Connection Type Press

Finish/Coating Zinc Nickel-Plated

Fitting Body Material Zinc Nickel-Plated Carbon Steel

Fitting Connection Type Press x Press x Press

Fitting Material Carbon Steel

Fitting Pipe Size 1 in

Fitting Shape Tee

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 1 in

Fitting Side B Connection Type Press-Fit

Fitting Side B Pipe Size 1 in

Fitting Side C Connection Type Press-Fit

Fitting Side C Pipe Size 1 in

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Overall Length 5 5/32 in

Package Quantity 1

Pipe Fitting Connection Type Press x Press x Press

Pipe Size 1 in x 1 in x 1 in

Pipe Size (Fittings) 1 x 1 x 1

Pipe Size - Pipe Fitting 1 in x 1 in x 1 in

Resistance Properties Corrosion-Resistant

Specific Fitting Shape Tee

Specific Pipe Fitting Shape Tee

Standards ABS: America Bureau of Shipping, CRN 0A14541.5 A/B, FM, FM Class 1920, IAPMO PS 117, IAPMO Uniform Mechanical Code (UMC), IAPMO Uniform Plumbing Code (UPC), ICC International Mechanical Code (IMC), ICC-ES PMG-1124, NFPA 13, NFPA 13D, NFPA 13R, TSSA/ASME B

Stop and Shape Tee

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material Carbon Steel

Tube Size 1 x 1 x 1
