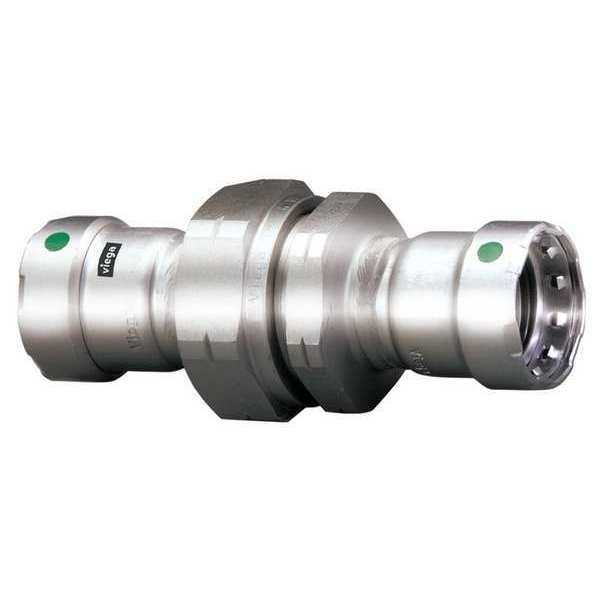

Viega MegaPress union, 1/2" x 1/2"

SKU
Brand Viega
Categories
Description Union, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Stainless Steel, Fitting Side A Pipe Size 1/2 in, Fitting Side B Pipe Size 1/2 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape Straight Union, Fitting Side B Tube Outer Diameter 1/2 in, Overall Length 4 17/32 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: 53UC02, mscSKU: , zoro_no: G0566522, mongo_id: 65bbe73d9a749db8227295ad

Web Price

$284.99 / each

Qty

Product Details

Application Potable Water

Compliance CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61

Connection Type Press-Fit x Press-Fit

Country of Origin (subject to change) Germany

End Connection Type Press

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Press x Press

Fitting Material Stainless Steel

Fitting Pipe Size 1/2 in

Fitting Shape Union

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 1/2 in

Fitting Side B Connection Type Press-Fit

Fitting Side B Pipe Size 1/2 in

Fitting Side B Tube Outer Diameter 1/2 in

For Tube OD 1/2 in

Material Grade 316

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Overall Length 4 17/32 in

Package Quantity 1

Pipe Fitting Connection Type Press x Press

Pipe Size 1/2 in x 1/2 in

Pipe Size (Fittings) 1/2 x 1/2

Pipe Size - Pipe Fitting 1/2 in x 1/2 in

Specific Fitting Shape Straight Union

Specific Pipe Fitting Shape Union

Standards ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9

Stop and Shape Straight Union

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material 316 Stainless Steel

Tube Size 1/2 in x 1/2 in
