Home / Viega MegaPressG reducer, 1" x 3/4"

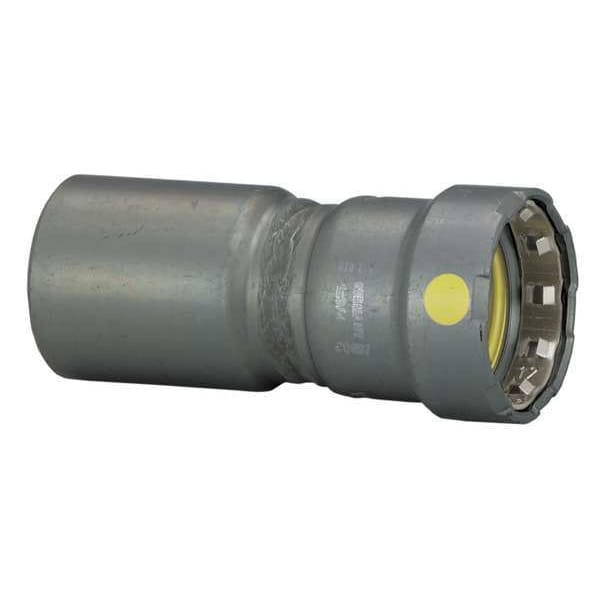

Viega MegaPressG reducer, 1" x 3/4"

SKU
Brand Viega
Categories
Description Reducer, Application Air, Fuel, Natural Gas, Fitting Side A Connection Type FTG, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 in, Fitting Material Carbon Steel, Fitting Side B Pipe Size 3/4 in, O-Ring Material HNBR, Specific Fitting Shape Straight Adapter, Finish/Coating Zinc Nickel-Plated, Overall Length 3 1/4 in, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 180 Degrees F
graingerSKU: 36N832, mscSKU: , zoro_no: G5008464, mongo_id: 65bbe8669a749db82278dc52

Web Price

$31.74 / each

Qty

Product Details

Application Air, Fuel, Natural Gas

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Reducer

Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO ANSI LC4/CSA 6.32, ICC-ES PMG-1036

Connection Type FTG x Press-Fit

Copper Tube Size 1 in

Country of Origin (subject to change) Germany

End Connection Type Fitting, Press

Finish/Coating Zinc Nickel-Plated

Fitting Body Material Zinc Nickel-Plated Carbon Steel

Fitting Connection Type Street x Press

Fitting Copper Tube Size 1 in

Fitting Material Carbon Steel

Fitting Pipe Size 3/4 in

Fitting Shape Adapter

Fitting Side A Connection Type FTG

Fitting Side A Copper Tube Size 1 in

Fitting Side B Connection Type Press-Fit

Fitting Side B Pipe Size 3/4 in

Max. Pressure 125 psi

Maximum Operating Pressure 125 psi

Maximum Operating Temperature 180 Degrees F

Minimum Operating Temperature 40 Degrees F

O-Ring Material HNBR

Overall Length 3 1/4 in

Package Quantity 1

Pipe Fitting Connection Type Street x Press

Pipe Size 3/4 in

Pipe Size (Fittings) 1 x 3/4

Pipe Size - Pipe Fitting 1 in x 3/4 in

Resistance Properties Chemical-Resistant, Heat-Resistant, Oil-Resistant

Specific Fitting Shape Straight Adapter

Specific Pipe Fitting Shape Reducer

Standards ABS Type Approval, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, IAPMO ANSI LC4/CSA 6.32, ICC, ICC-ES PMG-1036, IFGC, NFPA 54, NFPA 58

Stop and Shape Straight Adapter

Temp. Range -40 Degrees to 180 Degrees F

Tube Fitting Material Carbon Steel

Tube Size 1 x 3/4
