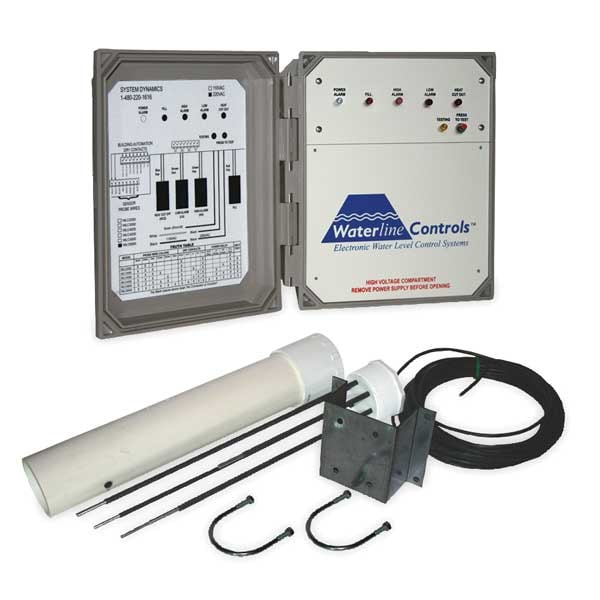

Level Control High/Low/ Low Heat Alarm

SKU
Brand Waterline Controls
Categories
Description Water Level Control, Universal, Electronic With Microprocessor For Site Automation or Integration, Switch Type (4)SPST, Enclosure Type NEMA 4X, Sensors Included Fill Height With High and Low Level Alarm and Low Heat Cut Off, Input Voltage 110 VAC 50/60 Hz, Includes Waterline Controller in NEMA 4x Box, Sensor Wire, Stainless Steel Sensor Assembly, Mounting Brackets and U Bolts, Installation Instructions,
graingerSKU: 4GHK7, mscSKU: , zoro_no: G1525142, mongo_id: 65bbe66c3aaddbd5a902c504

Web Price

$1,758.74 / each

Qty

Product Details

Agency Compliance ETL Listed

Application Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks

Control Type Electronic With Microprocessor For Site Automation or Integration

Country of Origin (subject to change) United States

Enclosure Color Gray

Enclosure Depth (In.) 6 in

Enclosure Height (In.) 8 3/4 in

Enclosure Type NEMA 4X

Enclosure Width (In.) 10 1/2 in

Includes Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box

Input Voltage 110V AC 50/60 Hz

Max. Circuit Length (Ft.) 50

Number of Switches 4

Operating Range 1 1/2, 3, 6, and 10 in

Package Quantity 1

Relays 30 Amps at 250V AC

Sensor Cord Length (Ft.) 50

Sensor Dia. (In.) 3 in

Sensor Length (In.) 20 in

Sensor Placement On The Environment Wall or In A Static Pipe

Sensors Included Fill Height With High and Low Level Alarm and Low Heat Cut Off

Special Features 110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes

Special Information The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade

Switch Type (4)SPST

Type Universal

Valve Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221
