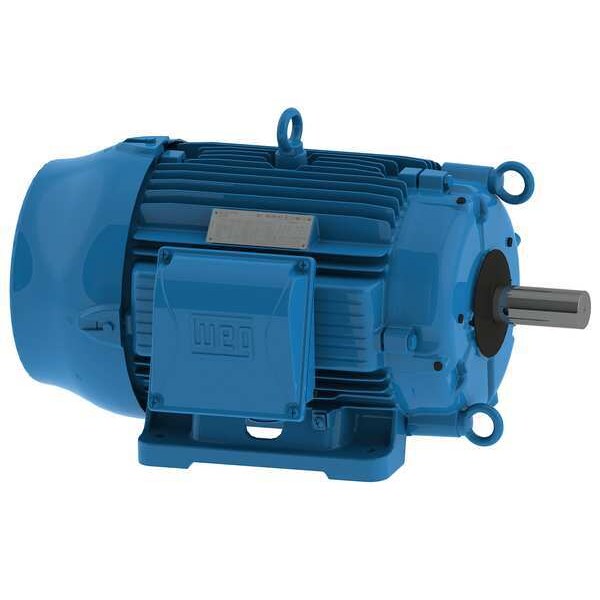

3-Phase Cooling Tower Motor, 2 HP, 143/5T Frame, 200V AC Voltage, 1,755 Nameplate RPM

3-Phase Cooling Tower Motor, 2 HP, 143/5T Frame, 200V AC Voltage, 1,755 Nameplate RPM

  • Weg
  • Cooling Tower Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 200V AC, 6.4 Full Load Amps, 143/5T Frame, Output Watts 1500 W, 60 Hz, Usable @ 208V No, Usable @ 200V Yes, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Frame Material Cast Iron

    graingerSKU: 19C673, mscSKU: , zoro_no: G6581574, mongo_id: 65bbe8b222d7a989a990d5d8

Web Price
$881.24 / each
Qty

Product Details

40 Degrees C
6 13/16 in
CC029A
Exterior
F1
Multiple
Continuous
Continuous
Durable synthetic enamel alkyd resin paint resists corrosion, Motors are suitable for operation in 100% humidity and corrosive environments
Painted
143/5T
Cast Iron
6.4
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
2
60
Space Heater
F
Yes
11 1/8 in
3 yr
40 Degrees C
Cooling Tower
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
All Angle
Rigid Base
1.25
Keyed
CW/CCW
None
1,755
1
86.5 %
1500 W
13 3/8 in
1
Three
Yes
1,701-1,800
7/8 in
2 1/4 in
CE, CSA Certified (LR38324), UL Recognized (E104590)
Yes
No
200V AC
115/200-230V AC, 200-208V AC, 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
3 yr
53.5 lb
