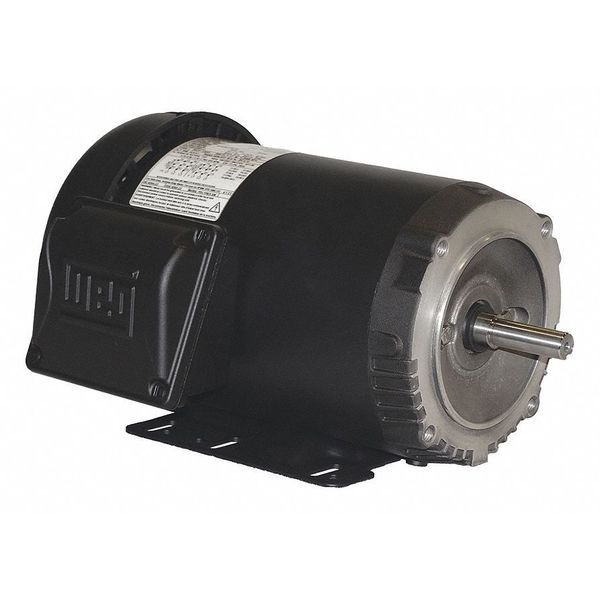

3-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,765 Nameplate RPM

3-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1,765 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 hp HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.94/1.47 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 52XR30, mscSKU: , zoro_no: G7598291, mongo_id: 65bbe7833aaddbd5a909d87e

Web Price
$452.79 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
56C
Rolled steel
2.94/1.47 A
3.09/1.64, 3.40/1.70 A
NEMA Premium(R) Rated
1
1 hp
60 Hz
Conduit Box
F
Yes
11 5/8 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Steel
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
1,765
None
1
85.5 %
13 1/2 in
1
Three
1,450
1701-1800
1,701-1,800
1
5/8 in
1 7/8 in
CSA, UL
No
Yes
230/460V AC
190/380V AC, 220/415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
37 lb
