Home / 3-Phase General Purpose Motor, 10 HP, 213/5TC Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

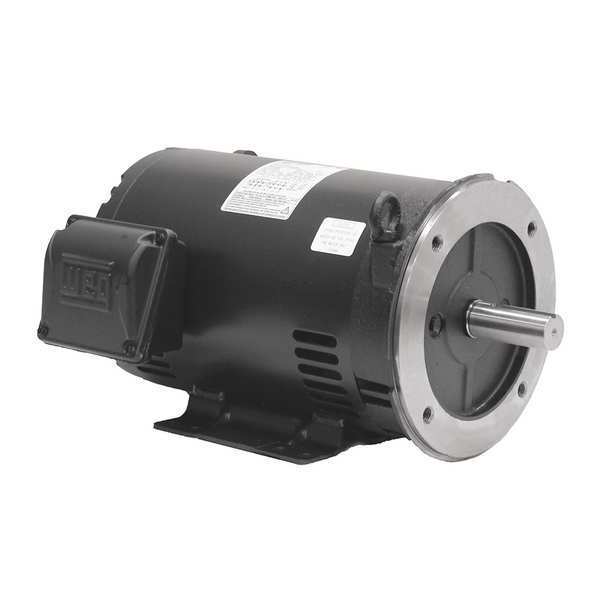

3-Phase General Purpose Motor, 10 HP, 213/5TC Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

3-Phase General Purpose Motor, 10 HP, 213/5TC Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 10 hp HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 24.8/12.4 A, 213/5TC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: 33HP21, mscSKU: , zoro_no: G8515744, mongo_id: 65bbe7d03aaddbd5a90ba503

Web Price
$1,406.24 / each
Qty

Product Details

No
CC029A
Multiple
Continuous
Continuous
213/5TC
Rolled steel
24.8/12.4 A
27.2/14.4, 29.8/14.9 A
NEMA Premium Rated
Does not Contain Formaldehyde
10
10 hp
60 Hz
F
Yes
13 3/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,770
None
1
91.7 %
16 9/16 in
1
Three
1,460
1701-1800
1,701-1,800
1.15
1 3/8 in
3 3/8 in
CSA (70014057), UL (E104590
No
Yes
230/460V AC
220/380V AC, 240/415, 400V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
131 lb
