Home / 3-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 3,490 Nameplate RPM

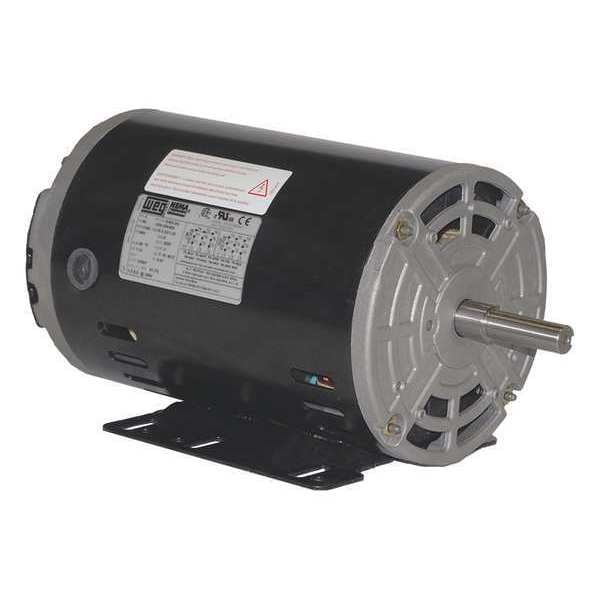

3-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 3,490 Nameplate RPM

3-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 3,490 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1/2 hp HP, Nameplate RPM 3,490, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.79-1.62/0.811 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle

    graingerSKU: 52XR17, mscSKU: , zoro_no: G7745361, mongo_id: 65bbe8c222d7a989a991485e

Web Price
$287.02 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
56
1.79-1.62/0.811 A
1.72/0.91, 1.85/0.925 A
NEMA Premium(R) Rated
1/2
1/2 hp
60 Hz
Conduit Box
F
Yes
8 7/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
All Angle
Rigid Base
1.25
Keyed
CW/CCW
None
3,490
1
73.4 %
10 5/16 in
1
Three
2,870
3001-3600
3,001-3,600
1.25
5/8 in
1 7/8 in
CSA, UL
No
Yes
208-230/460V AC
190/380V AC, 220/415V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
16.3 lb
