Home / 3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 575V AC Voltage, 3,535 Nameplate RPM

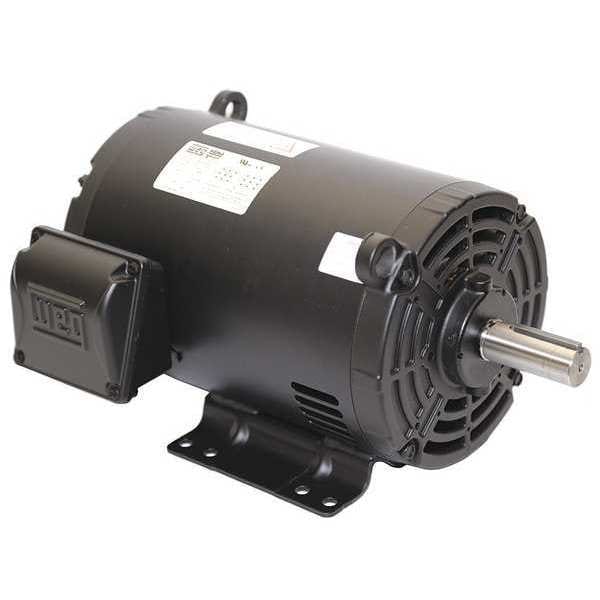

3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 575V AC Voltage, 3,535 Nameplate RPM

3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 575V AC Voltage, 3,535 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 15 hp HP, Nameplate RPM 3,535, No. of Speeds 1, Voltage 575V AC, Full Load Amps 13.8 A, 213/5T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: 33HP27, mscSKU: , zoro_no: G8515805, mongo_id: 65bbe93422d7a989a993f922

Web Price
$1,784.85 / each
Qty

Product Details

No
CC029A
Multiple
Continuous
Continuous
213/5T
Rolled steel
13.8 A
NEMA Premium Rated
Does not Contain Formaldehyde
15
60 Hz
F
Yes
14 3/8 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,535
B
1
90.2 %
17 3/4 in
1
Three
3001-3600
3,001-3,600
1 3/8 in
3 3/8 in
CSA (70014057), UL (E104590
No
No
575V AC
575V AC
130 lb
