Home / 3-Phase General Purpose Motor, 15 HP, 254TC Frame, 575V AC Voltage, 1,775 Nameplate RPM

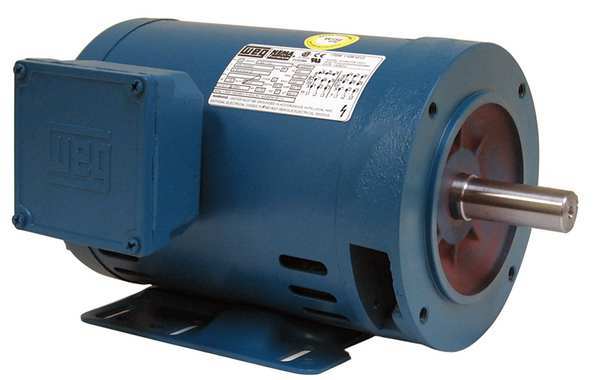

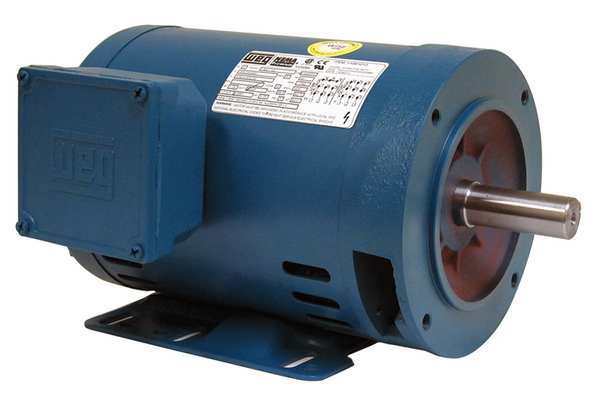

3-Phase General Purpose Motor, 15 HP, 254TC Frame, 575V AC Voltage, 1,775 Nameplate RPM
3-Phase General Purpose Motor, 15 HP, 254TC Frame, 575V AC Voltage, 1,775 Nameplate RPM

3-Phase General Purpose Motor, 15 HP, 254TC Frame, 575V AC Voltage, 1,775 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 15 hp HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 575V AC, Full Load Amps 14.9 A, 254TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed

    graingerSKU: 12N921, mscSKU: , zoro_no: G9962434, mongo_id: 65bbe77c9a749db82273df49

Web Price
$2,314.99 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
4:1 CT and 10:1 VT
254TC
Cast Iron
14.9 A
NEMA Premium(R) Rated
15 hp
60 Hz
F
16 11/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
Open Dripproof
Cast Iron
Rigid Base
1.15
Keyed
CW/CCW
None
1,775
None
1
93 %
12
20 11/16 in
1
Three
1701-1800
1,701-1,800
1 5/8 in
4 in
CE, CSA, UL
No
No
575V AC
575V AC
241 lb
