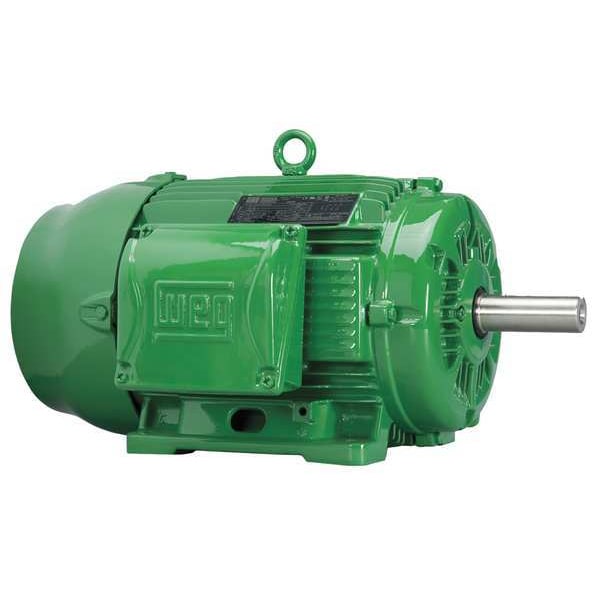

3-Phase General Purpose Motor, 15 HP, 284T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM

3-Phase General Purpose Motor, 15 HP, 284T Frame, 230/460V AC Voltage, 1,180 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 15 hp HP, Nameplate RPM 1,180, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 36.2/18.1 A, 284T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design A, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 39J114, mscSKU: , zoro_no: G9889074, mongo_id: 65bbe8789a749db82279414e

Web Price
$4,257.49 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
20:1 CT & 1000:1 VT
284T
Cast Iron
36.2/18.1 A
20.4, 21.0, 21.7 A
NEMA Premium(R) Rated
1 1/2
15 hp
60 Hz
F
23 5/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.25
Keyed
CW/CCW
None
1,180
A
1
93 %
27 15/16 in
1
Three
980
1101-1200
1,101-1,200
1.15
1 7/8 in
4 5/8 in
CE, CSA, NOM, UL
No
Yes
230/460V AC
380V AC, 400V AC, 415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
420 lb
