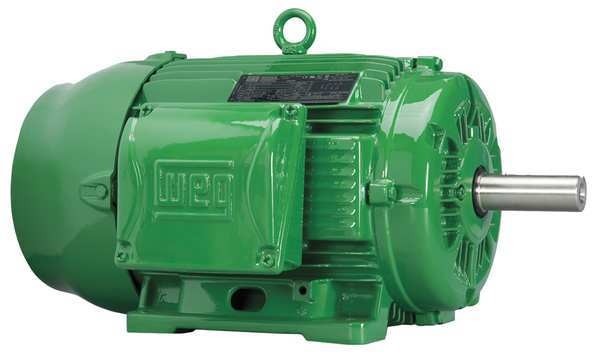

3-Phase General Purpose Motor, 150 HP, 447/9T Frame, 460V AC Voltage, 1,190 Nameplate RPM

SKU
Brand Weg
Categories
Description General Purpose Motor, Three Phase, Motor Design 3-Phase, 150 hp HP, Nameplate RPM 1,190, No. of Speeds 1, Voltage 460V AC, Full Load Amps 179 A, 447/9T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design A, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 39J144, mscSKU: , zoro_no: G9888803, mongo_id: 65bbe7f59a749db822768eec

Web Price

$26,141.24 / each

Qty

Product Details

CC Number CC029A

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Footnotes 20:1 CT & 1000:1 VT

Frame 447/9T

Frame Material Cast Iron

Full Load Amps 179 A

Full Load Amps @ 50Hz 200.0, 205, 211 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP @ 50Hz 150

HP_ 150 hp

Hz_ 60 Hz

Ins. Class F

Length Less Shaft 47 13/16 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.25

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,190

NEMA Design A

No. of Speeds 1

Nominal Efficiency 96.2 %

Overall Length 56 5/16 in

Package Quantity 1

Phase Three

RPM @ 50Hz 990

RPM Group 1101-1200

RPM Range 1,101-1,200

Service Factor @ 50Hz 1.15, 1.25

Shaft Dia. 3 3/8 in

Shaft Length 8 1/2 in

Standards CE, CSA, NOM, UL

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage @ 50Hz 380V AC, 400V AC, 415V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 2,838 lb
