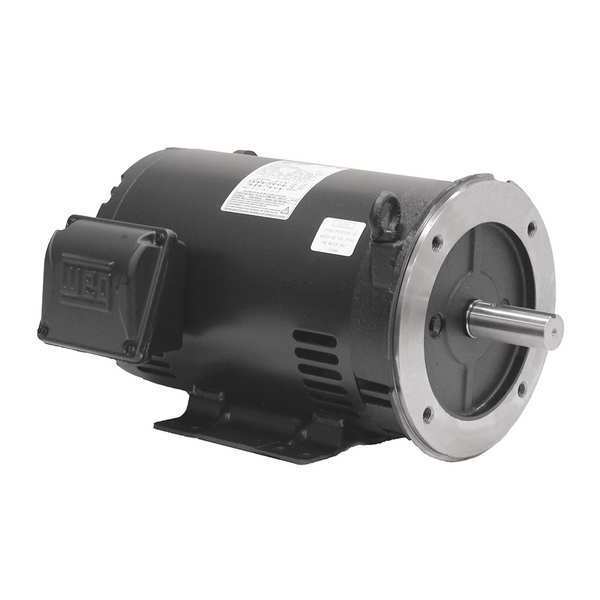

3-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 1,740 Nameplate RPM

3-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 1,740 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 hp HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.38/2.69 A, 143/5TC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: 33HN96, mscSKU: , zoro_no: G8515534, mongo_id: 65bbe7833aaddbd5a909d878

Web Price
$585.17 / each
Qty

Product Details

No
CC029A
Multiple
Continuous
Continuous
143/5TC
Rolled steel
5.38/2.69 A
5.9/3.1, 6.52/3.26 A
NEMA Premium Rated
Does not Contain Formaldehyde
2
2 hp
60 Hz
F
Yes
10 1/8 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,740
None
1
86.5 %
12 3/8 in
1
Three
1,420
1701-1800
1,701-1,800
1
7/8 in
2 1/4 in
CSA (70014057), UL (E104590
No
Yes
230/460V AC
190/380V AC, 220/415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
40.3 lb
