Home / 3-Phase General Purpose Motor, 25 HP, 254/6T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM

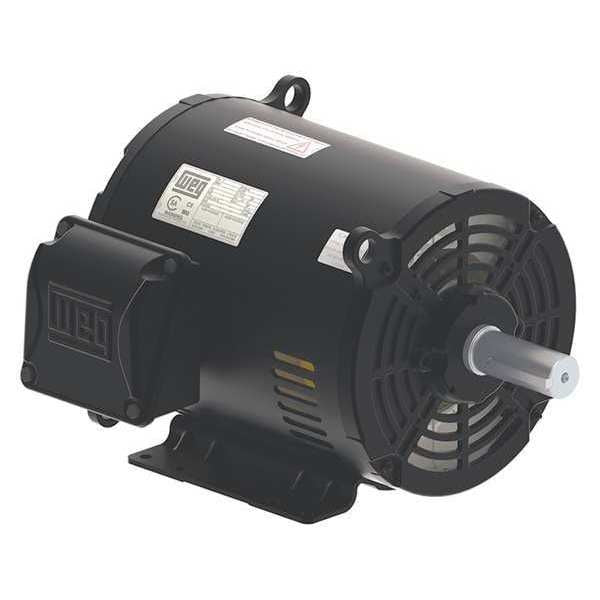

3-Phase General Purpose Motor, 25 HP, 254/6T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM

3-Phase General Purpose Motor, 25 HP, 254/6T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 25 hp HP, Nameplate RPM 3,530, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 58.2/29.1 A, 254/6T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Inverter Rated Yes

    graingerSKU: 33HN02, mscSKU: , zoro_no: G3474655, mongo_id: 65bbe9ec22d7a989a9987711

Web Price
$2,543.74 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
254/6T
Rolled steel
58.2/29.1 A
70.6/35.3 A
NEMA Premium Rated
Does not Contain Formaldehyde
25
25
60 Hz
F
Yes
16 1/2 in
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Rigid Base
1.15
Keyed
CW/CCW
None
3,530
B
1
91.7 %
20 1/2 in
1
Three
2,910
3001-3600
3,001-3,600
1.15
1 5/8 in
4 in
CSA (70014057), UL (E104590
No
Yes
230/460V AC
190/380V AC, 220/415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
180 lb
