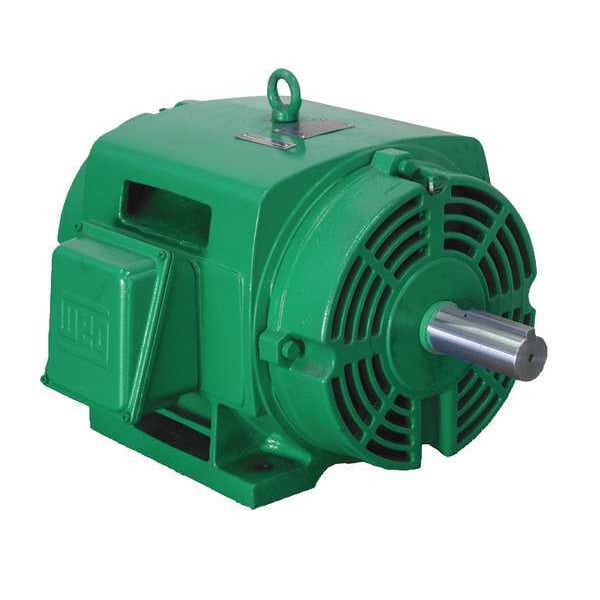

3-Phase General Purpose Motor, 25 HP, 256T Frame, 230/460V AC Voltage, 3,535 Nameplate RPM

3-Phase General Purpose Motor, 25 HP, 256T Frame, 230/460V AC Voltage, 3,535 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 25 hp HP, Nameplate RPM 3,535, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 57.6/28.8 A, 256T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: 1XTX5, mscSKU: , zoro_no: G3052411, mongo_id: 65bbe93422d7a989a993f92f

Web Price
$2,585.89 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
3,17
256T
Cast Iron
57.6/28.8 A
27.0, 27.4, 28.2 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
20
25
60 Hz
F
18 5/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Cast Iron
Horizontal
Rigid Base
1.25
Keyed
CW/CCW
None
3,535
B
1
91.7 %
22 5/16 in
1
Three
2,940
3001-3600
3,001-3,600
1
1 5/8 in
4 in
CE, CSA, UL
No
Yes
230/460V AC
380V AC, 400V AC, 415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
237 lb
