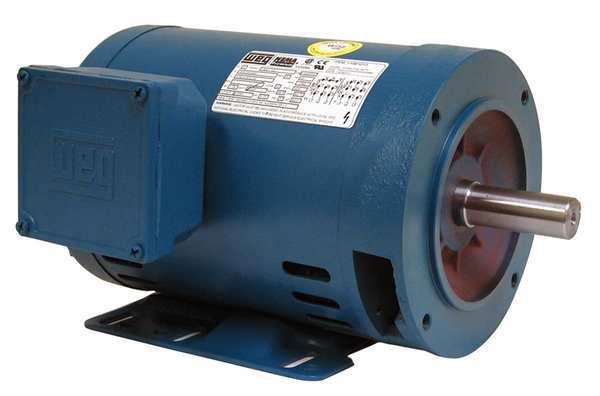

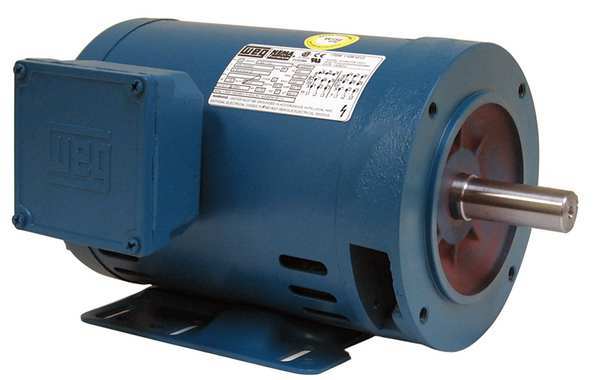

3-Phase General Purpose Motor, 25 HP, 284TC Frame, 230/460V AC Voltage, 1,770 Nameplate RPM
3-Phase General Purpose Motor, 25 HP, 284TC Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

3-Phase General Purpose Motor, 25 HP, 284TC Frame, 230/460V AC Voltage, 1,770 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 25 hp HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 59.0/29.5 A, 284TC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed

    graingerSKU: 12N924, mscSKU: , zoro_no: G9962407, mongo_id: 65bbe7f59a749db822768eef

Web Price
$2,928.74 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
4:1 CT and 10:1 VT
284TC
Cast Iron
59.0/29.5 A
NEMA Premium(R) Rated
25 hp
60 Hz
F
18 9/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
Open Dripproof
Cast Iron
Rigid Base
1.25
Keyed
CW/CCW
None
1,770
None
1
93.6 %
12
23 3/16 in
1
Three
1701-1800
1,701-1,800
1 7/8 in
4 5/8 in
CE, CSA, UL
No
Yes
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
358 lb
