Home / 3-Phase General Purpose Motor, 25 HP, 284TC Frame, 575V AC Voltage, 1,765 Nameplate RPM

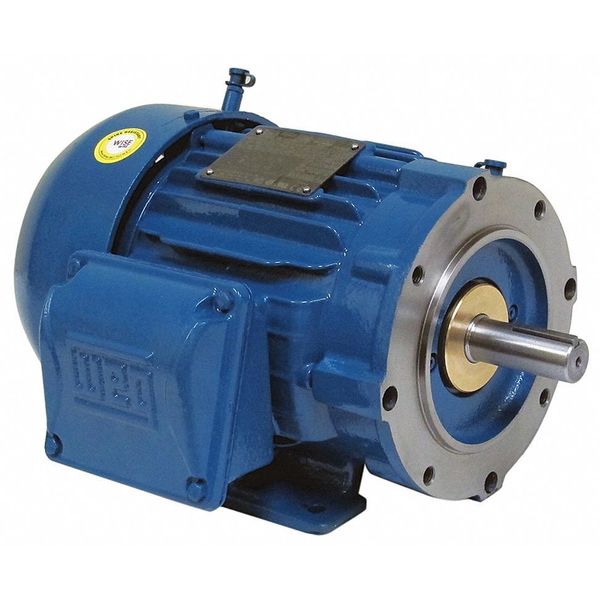

3-Phase General Purpose Motor, 25 HP, 284TC Frame, 575V AC Voltage, 1,765 Nameplate RPM

3-Phase General Purpose Motor, 25 HP, 284TC Frame, 575V AC Voltage, 1,765 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 25 hp HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 575V AC, Full Load Amps 23.6 A, 284TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed

    graingerSKU: 12N903, mscSKU: , zoro_no: G9962461, mongo_id: 65bbe77c9a749db82273df47

Web Price
$3,373.74 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
20:1 CT and 1000:1 VT
284TC
Cast Iron
23.6 A
NEMA Premium(R) Rated
25 hp
60 Hz
F
23 5/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
Totally Enclosed Fan-Cooled
Cast Iron
Rigid Base
1.25
Keyed
CW/CCW
None
1,765
None
1
93.6 %
12
27 15/16 in
1
Three
1701-1800
1,701-1,800
1 7/8 in
4 5/8 in
CE, CSA, NOM, UL
No
No
575V AC
575V AC
420 lb
