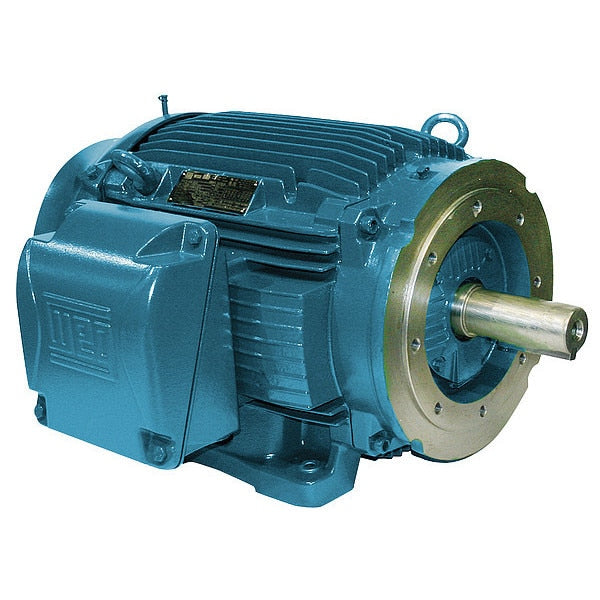

3-Phase General Purpose Motor, 25 HP, 284TSC Frame, 230/460V AC Voltage, 3,545 Nameplate RPM

3-Phase General Purpose Motor, 25 HP, 284TSC Frame, 230/460V AC Voltage, 3,545 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 25 hp HP, Nameplate RPM 3,545, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 57.0/28.5 A, 284TSC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 6FDT1, mscSKU: , zoro_no: G1429574, mongo_id: 65bbea1722d7a989a9995b1b

Web Price
$3,619.30 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
284TSC
Cast Iron
57.0/28.5 A
25.8, 26.5, 27.6, 31.8, 33.3, 34.9 A
NEMA Premium(R) Rated
20, 25
25 hp
60 Hz
F
Yes
23 5/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
All Angle
Rigid Base
1.25
Keyed
CW/CCW
None
3,545
B
1
91.7 %
26 9/16 in
1
Three
2,930
3001-3600
3,001-3,600
1
1 5/8 in
3 1/4 in
CE, CSA, NOM, UL
No
Yes
230/460V AC
380V AC, 400V AC, 415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
387 lb
