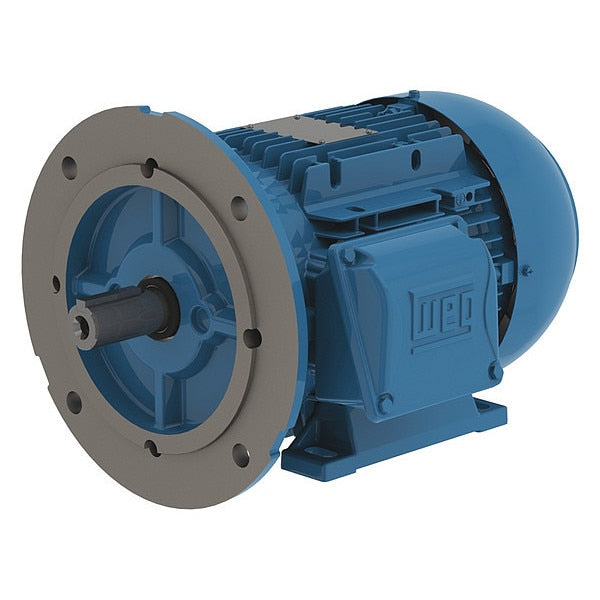

3-Phase General Purpose Motor, 3 HP, 90L Frame, 460V AC Voltage, 3,480 Nameplate RPM

SKU
Brand Weg
Categories
Description General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 hp HP, Nameplate RPM 3,480, No. of Speeds 1, Voltage 460V AC, Full Load Amps 3.85 A, 90L Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base, Motor Shaft Design Keyed
graingerSKU: 482V77, mscSKU: , zoro_no: G6559493, mongo_id: 65bbe77c9a749db82273df3f

Web Price

$1,123.74 / each

Qty

Product Details

CC Number CC029A

Country of Origin (subject to change) Brazil

Duty Continuous

Duty Cycle Continuous

Frame 90L

Full Load Amps 3.85 A

Full Load Amps @ 50Hz 4.4, 7.56/4.37, 7.81/4.52 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP @ 50Hz 3

HP_ 3 hp

Hz_ 60 Hz

Includes Eye Bolt

Ins. Class F

kW_ 2.2

Length Less Shaft 279 mm

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Aluminum

Motor Mounting Type Face/Base

Motor Service Factor 1.25

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 3,480

NEMA Design N

No. of Speeds 1

Nominal Efficiency 86.5 %

Overall Length 329 mm

Package Quantity 1

Phase Three

RPM @ 50Hz 2,840

RPM Range 3,001-3,600

Service Factor @ 50Hz 1

Shaft Dia. 24 mm

Shaft Length 50 mm

Standards IEC34, IEC79

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage @ 50Hz 220/380V AC, 240/415, 400V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 48.3 lb
