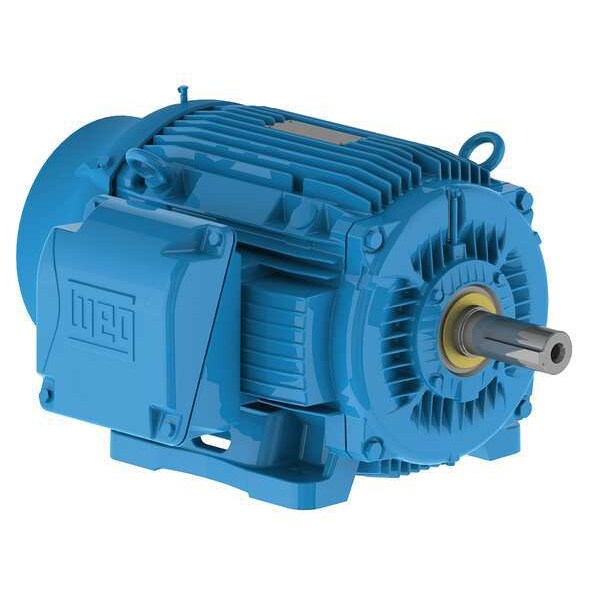

3-Phase General Purpose Motor, 30 HP, 286T Frame, 460V AC Voltage, 1,765 Nameplate RPM

SKU
Brand Weg
Categories
Description General Purpose Motor, Three Phase, Motor Design 3-Phase, 30 hp HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 460V AC, Full Load Amps 35.1 A, 286T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 19C667, mscSKU: , zoro_no: G9945056, mongo_id: 65bbe84d9a749db822785ae0

Web Price

$4,841.24 / each

Qty

Product Details

CC Number CC029A

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Frame 286T

Frame Material Cast Iron

Full Load Amps 35.1 A

Full Load Amps @ 50Hz 35.1 A

Green Certification or Other Recognition NEMA Premium Rated

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

HP @ 50Hz 30

HP_ 30 hp

Hz_ 60/50 Hz

Ins. Class F

Inverter Rated Yes

Length Less Shaft 23 1/4 in

Manufacturers Warranty Length 5 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.25

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,765

NEMA Design B

No. of Speeds 1

Nominal Efficiency 93.6 %

Overall Length 27 15/16 in

Package Quantity 1

Phase Three

RPM @ 50Hz 1,765

RPM Group 1701-1800

RPM Range 1,701-1,800

Service Factor @ 50Hz 1.25

Shaft Dia. 1 7/8 in

Shaft Length 4 1/2 in

Standards CE, CSA, NOM, UL

Usable @ 200V No

Usable @ 208V Yes

Voltage 460V AC

Voltage @ 50Hz 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 464 lb
