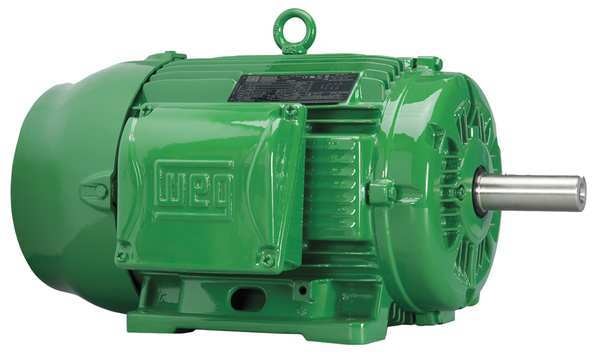

3-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC Voltage, 1,780 Nameplate RPM

3-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC Voltage, 1,780 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 40 hp HP, Nameplate RPM 1,780, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 97.8/48.9 A, 324T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design A, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 39J125, mscSKU: , zoro_no: G9888977, mongo_id: 65bbe7363aaddbd5a9080f10

Web Price
$5,457.49 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
20:1 CT & 1000:1 VT
324T
Cast Iron
97.8/48.9 A
54.5, 55.2, 57.7 A
NEMA Premium(R) Rated
40
40 hp
60 Hz
F
25 7/8 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.25
Keyed
CW/CCW
None
1,780
A
1
95 %
31 1/8 in
1
Three
1,480
1701-1800
1,701-1,800
1.15
2 1/8 in
5 1/4 in
CE, CSA, NOM, UL
No
Yes
230/460V AC
380V AC, 400V AC, 415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
599 lb
