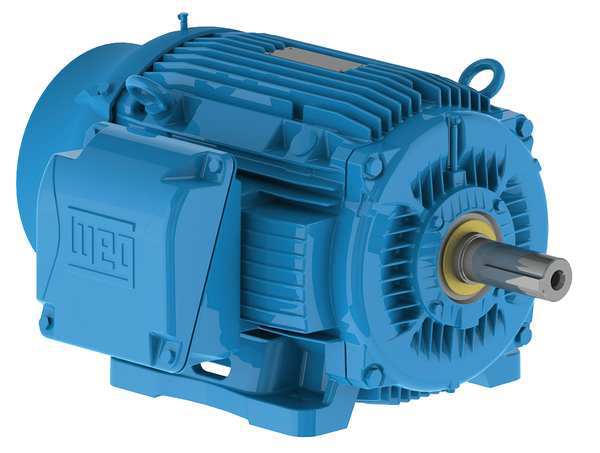

3-Phase General Purpose Motor, 40 HP, 324T Frame, 460V AC Voltage, 1,775 Nameplate RPM

SKU
Brand Weg
Categories
Description General Purpose Motor, Three Phase, Motor Design 3-Phase, 40 hp HP, Nameplate RPM 1,775, No. of Speeds 1, Voltage 460V AC, Full Load Amps 48.2 A, 324T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: null, mscSKU: null, zoro_no: G9945047, mongo_id: 65bbe5df3aaddbd5a9ff18e8

Web Price

$6,929.99 / each

Qty

Product Details

CC Number CC029A

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Frame 324T

Frame Material Cast Iron

Full Load Amps 48.2 A

Full Load Amps @ 50Hz 48.2 A

Green Certification or Other Recognition NEMA Premium Rated

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

HP_ 40 hp

Hz_ 60/50 Hz

Ins. Class F

Inverter Rated Yes

Length Less Shaft 24 1/4 in

Manufacturers Warranty Length 5 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.25

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,775

NEMA Design B

No. of Speeds 1

Nominal Efficiency 94.1 %

Overall Length 29 1/2 in

Package Quantity 1

Phase Three

RPM Group 1701-1800

RPM Range 1,701-1,800

Shaft Dia. 2 1/8 in

Shaft Length 5 1/4 in

Standards CE, CSA, NOM, UL

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
