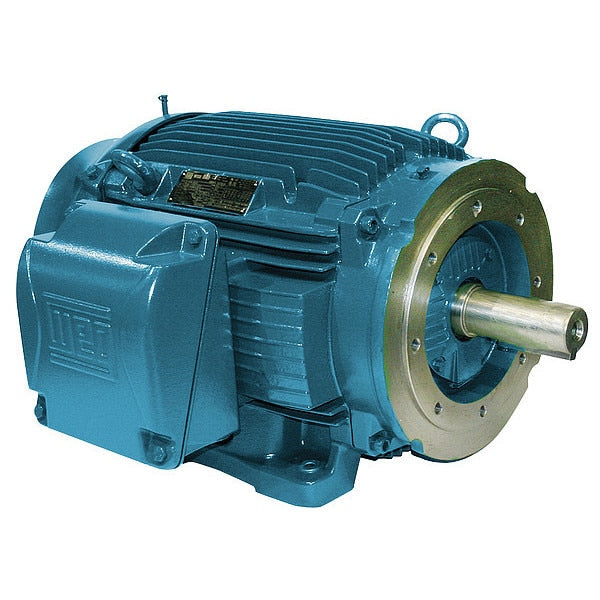

3-Phase General Purpose Motor, 40 HP, 324TSC Frame, 230/460V AC Voltage, 3,555 Nameplate RPM

3-Phase General Purpose Motor, 40 HP, 324TSC Frame, 230/460V AC Voltage, 3,555 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 40 hp HP, Nameplate RPM 3,555, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 91.6/45.8 A, 324TSC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: null, mscSKU: null, zoro_no: G0297893, mongo_id: 65bbe6243aaddbd5a900e55c

Web Price
$5,634.99 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
324TSC
Cast Iron
91.6/45.8 A
37.5, 38.5, 40.5, 51.1, 53.1, 56.3 A
NEMA Premium(R) Rated
30, 40
40 hp
60 Hz
F
Yes
25 7/8 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
All Angle
Rigid Base
1.25
Keyed
CW/CCW
None
3,555
B
1
92.4 %
29 5/8 in
1
Three
2,960
3001-3600
3,001-3,600
1
1 7/8 in
3 3/4 in
CE, CSA, NOM, UL
No
Yes
230/460V AC
380V AC, 400V AC, 415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
567 lb
