Home / 3-Phase General Purpose Motor, 5 HP, 230/460V AC Voltage, 215T Frame, 1,170 Nameplate RPM

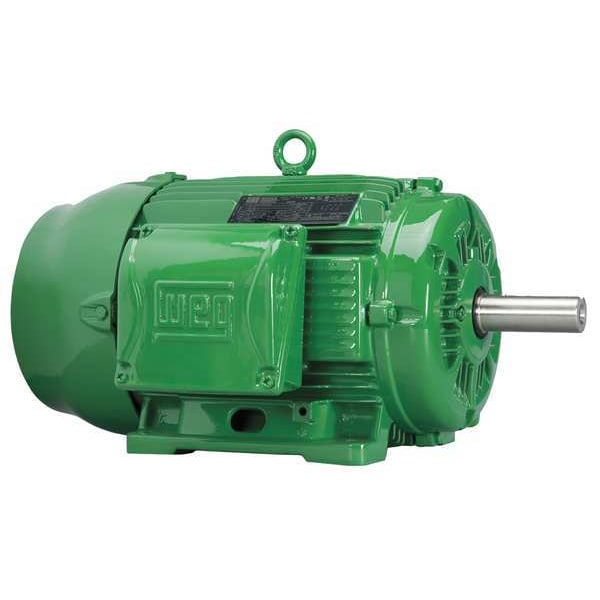

3-Phase General Purpose Motor, 5 HP, 230/460V AC Voltage, 215T Frame, 1,170 Nameplate RPM

3-Phase General Purpose Motor, 5 HP, 230/460V AC Voltage, 215T Frame, 1,170 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 5 hp HP, Nameplate RPM 1,170, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.6/6.80 A, 215T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 39J105, mscSKU: , zoro_no: G0120362, mongo_id: 65bbe6ad3aaddbd5a904795b

Web Price
$1,782.49 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
20:1 CT & 1000:1 VT
215T
Cast Iron
13.6/6.80 A
7.6, 7.7, 8.05 A
NEMA Premium(R) Rated
5
5 hp
60 Hz
F
17 1/8 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.25
Keyed
CW/CCW
None
1,170
None
1
91 %
20 1/2 in
1
Three
970
1101-1200
1,101-1,200
1.15, 1.25
1 3/8 in
3 3/8 in
CE, CSA, NOM, UL
No
Yes
230/460V AC
380V AC, 400V AC, 415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
200 lb
