Home / 3-Phase General Purpose Motor, 7 1/2 HP, 230/460V AC Voltage, 254T Frame, 1,175 Nameplate RPM

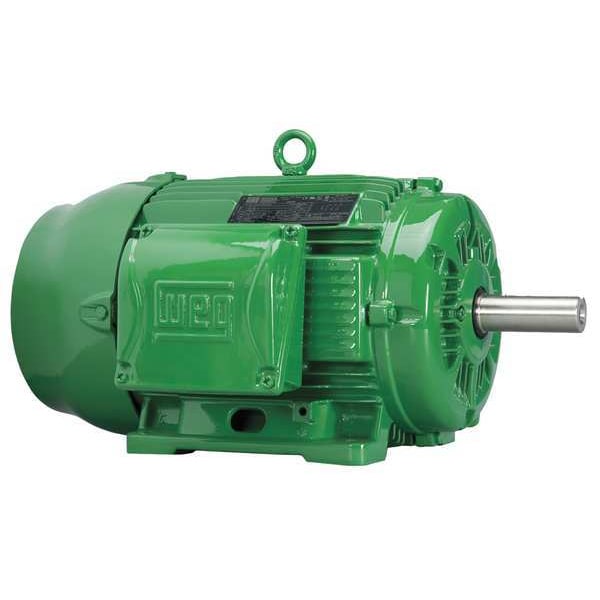

3-Phase General Purpose Motor, 7 1/2 HP, 230/460V AC Voltage, 254T Frame, 1,175 Nameplate RPM

3-Phase General Purpose Motor, 7 1/2 HP, 230/460V AC Voltage, 254T Frame, 1,175 Nameplate RPM

  • Weg
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 1,175, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 18.9/9.46 A, 254T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 39J108, mscSKU: , zoro_no: G0120195, mongo_id: 65bbe87822d7a989a98f7f03

Web Price
$2,767.49 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
20:1 CT & 1000:1 VT
254T
Cast Iron
18.9/9.46 A
10.3, 10.6, 10.9 A
NEMA Premium(R) Rated
7 1/2
7 1/2 hp
60 Hz
F
20 15/16 in
3 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.25
Keyed
CW/CCW
None
1,175
None
1
92.4 %
24 15/16 in
1
Three
980
1101-1200
1,101-1,200
1.15
1 5/8 in
4 in
CE, CSA, NOM, UL
No
Yes
230/460V AC
380V AC, 400V AC, 415V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
318 lb
