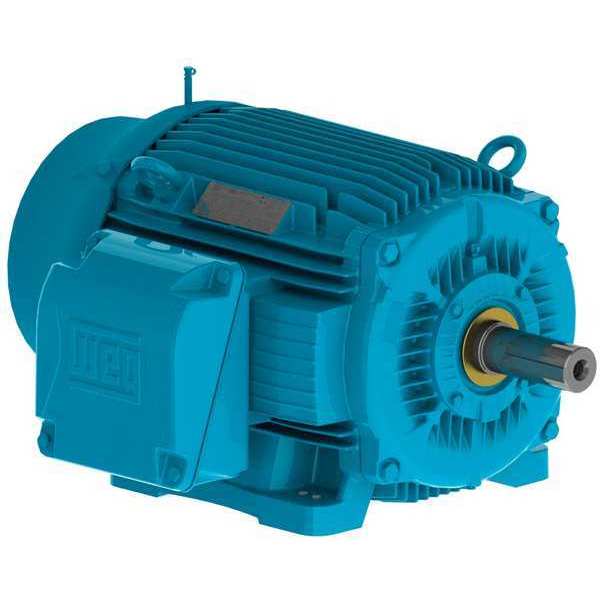

3-Phase IEEE 841 Motor, 15 HP, 284T Frame, 460V AC Voltage, 1,175 Nameplate RPM

SKU
Brand Weg
Categories
Description IEEE 841 Motor, Three Phase, Motor Design 3-Phase, 15 hp HP, Nameplate RPM 1,175, No. of Speeds 1, Voltage 460V AC, Full Load Amps 17.9 A, 284T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
graingerSKU: null, mscSKU: null, zoro_no: G0554994, mongo_id: 65bbe5df3aaddbd5a9ff18db

Web Price

$4,850.84 / each

Qty

Product Details

CC Number CC029A

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Frame 284T

Frame Material Cast Iron

Full Load Amps 17.9 A

Full Load Amps @ 50Hz 14.9, 15.1, 15.5, 20.2, 20.9, 22.0 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP @ 50Hz 15

HP_ 15 hp

Hz_ 60 Hz

Ins. Class F

Inverter Rated Yes

Length Less Shaft 23 5/16 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application IEEE Motor

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position All Angle

Motor Mounting Type Rigid Base

Motor Service Factor 1.25

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,175

NEMA Design B

No. of Speeds 1

Nominal Efficiency 91.7 %

Overall Length 27 15/16 in

Package Quantity 1

Phase Three

RPM @ 50Hz 985

RPM Group 1101-1200

RPM Range 1,101-1,200

Service Factor @ 50Hz 1.25

Shaft Dia. 1 7/8 in

Shaft Length 4 5/8 in

Standards CE, CSA, NOM, UL

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage @ 50Hz 380V AC, 400V AC, 415V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 398 lb
