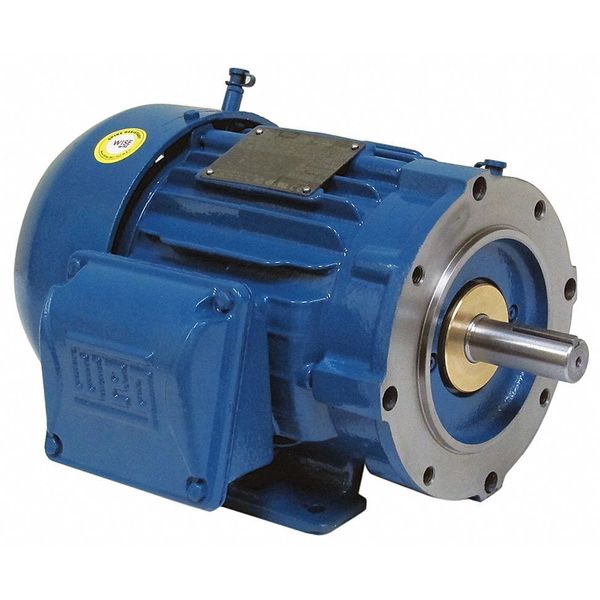

3-Phase IEEE 841 Motor, 25 HP, 324TC Frame, 460V AC Voltage, 1,175 Nameplate RPM

SKU
Brand Weg
Categories
Description IEEE 841 Motor, Three Phase, Motor Design 3-Phase, 25 hp HP, Nameplate RPM 1,175, No. of Speeds 1, Voltage 460V AC, Full Load Amps 30.4 A, 324TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Base, Motor Shaft Design Keyed
graingerSKU: 12N947, mscSKU: , zoro_no: G9962337, mongo_id: 65bbe7833aaddbd5a909d879

Web Price

$6,701.24 / each

Qty

Product Details

CC Number CC029A

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Footnotes 20:1 CT and 1000:1 VT

Frame 324TC

Frame Material Cast Iron

Full Load Amps 30.4 A

Full Load Amps @ 50Hz 28.6, 29.4, 30.0, 34.2, 35.1, 36.3 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP @ 50Hz 20, 25

HP_ 25 hp

Hz_ 60 Hz

Ins. Class F

Length Less Shaft 25 7/8 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application IEEE Motor

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Type C-Face, Base

Motor Service Factor 1.25

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,175

NEMA Design B

No. of Speeds 1

Nominal Efficiency 93 %

Number of Wires 12

Overall Length 31 1/8 in

Package Quantity 1

Phase Three

RPM @ 50Hz 970

RPM Group 1101-1200

RPM Range 1,101-1,200

Service Factor @ 50Hz 1, 1.15

Shaft Dia. 2 1/8 in

Shaft Length 5 1/4 in

Standards CE, CSA, NOM, UL

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage @ 50Hz 380V AC, 400V AC, 415V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 567 lb
