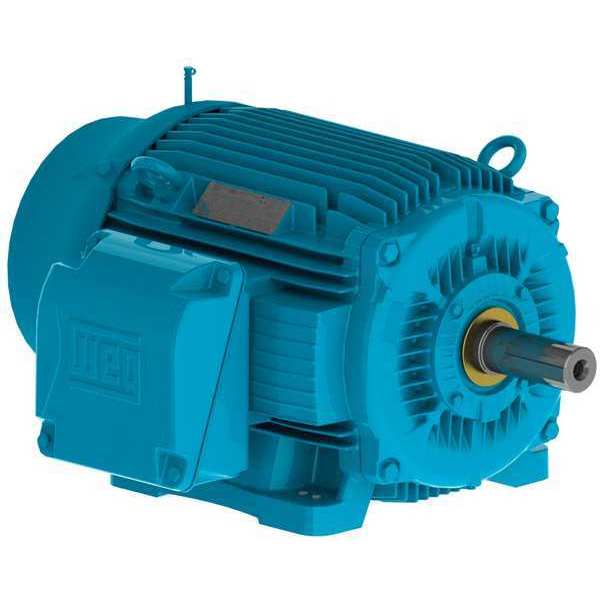

3-Phase IEEE 841 Motor, 40 HP, 324TS Frame, 460V AC Voltage, 3,555 Nameplate RPM

SKU
Brand Weg
Categories
Description IEEE 841 Motor, Three Phase, Motor Design 3-Phase, 40 hp HP, Nameplate RPM 3,555, No. of Speeds 1, Voltage 460V AC, Full Load Amps 45.8 A, 324TS Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
graingerSKU: 6AGX3, mscSKU: , zoro_no: G0462131, mongo_id: 65bbe9ec22d7a989a998770a

Web Price

$6,326.24 / each

Qty

Product Details

CC Number CC029A

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Frame 324TS

Frame Material Cast Iron

Full Load Amps 45.8 A

Full Load Amps @ 50Hz 37.5, 38.5, 40.5, 51.1, 53.1, 56.3 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP @ 50Hz 30, 40

HP_ 40

Hz_ 60 Hz

Ins. Class F

Inverter Rated Yes

Length Less Shaft 25 7/8 in

Manufacturers Warranty Length 5 yr

Max. Ambient Temp. 104 Degrees F

Motor Application IEEE Motor

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position All Angle

Motor Mounting Type Rigid Base

Motor Service Factor 1.25

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 3,555

NEMA Design B

No. of Speeds 1

Nominal Efficiency 92.4 %

Overall Length 29 5/8 in

Package Quantity 1

Phase Three

RPM @ 50Hz 2,960

RPM Group 3001-3600

RPM Range 3,001-3,600

Service Factor @ 50Hz 1

Shaft Dia. 1 7/8 in

Shaft Length 3 3/4 in

Standards CE, CSA, NOM, UL

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage @ 50Hz 380V AC, 400V AC, 415V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 558 lb
