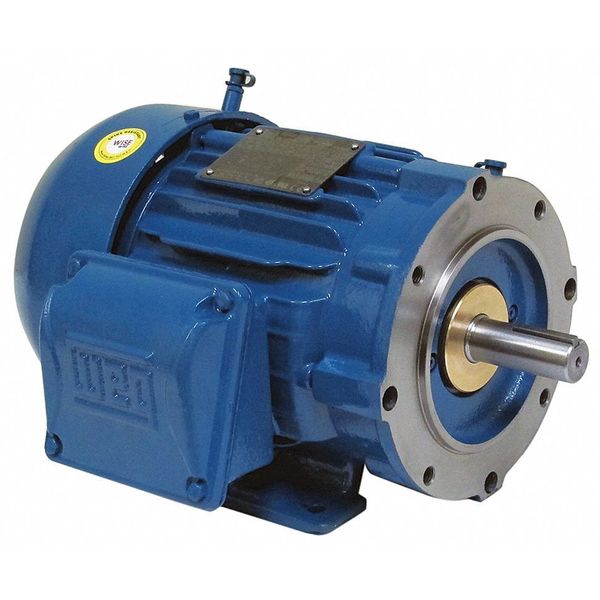

3-Phase IEEE 841 Motor, 7 1/2 HP, 213TC Frame, 460V AC Voltage, 1,765 Nameplate RPM

SKU
Brand Weg
Categories
Description IEEE 841 Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 460V AC, Full Load Amps 9.18 A, 213TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Base, Motor Shaft Design Keyed
graingerSKU: 12N938, mscSKU: , zoro_no: G3904914, mongo_id: 65bbea4122d7a989a99a41ab

Web Price

$2,059.99 / each

Qty

Product Details

CC Number CC029A

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Footnotes 20:1 CT and 1000:1 VT

Frame 213TC

Frame Material Cast Iron

Full Load Amps 9.18 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP_ 7 1/2 hp

Hz_ 60 Hz

Ins. Class F

Length Less Shaft 16 3/16 in

Manufacturers Warranty Length 5 yr

Max. Ambient Temp. 104 Degrees F

Motor Application IEEE Motor

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Type C-Face, Base

Motor Service Factor 1.25

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,765

NEMA Design None

No. of Speeds 1

Nominal Efficiency 91.7 %

Number of Wires 9

Overall Length 19 9/16 in

Package Quantity 1

Phase Three

RPM Group 1701-1800

RPM Range 1,701-1,800

Shaft Dia. 1 3/8 in

Shaft Length 3 3/8 in

Standards CE, CSA, NOM, UL

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 180 lb
